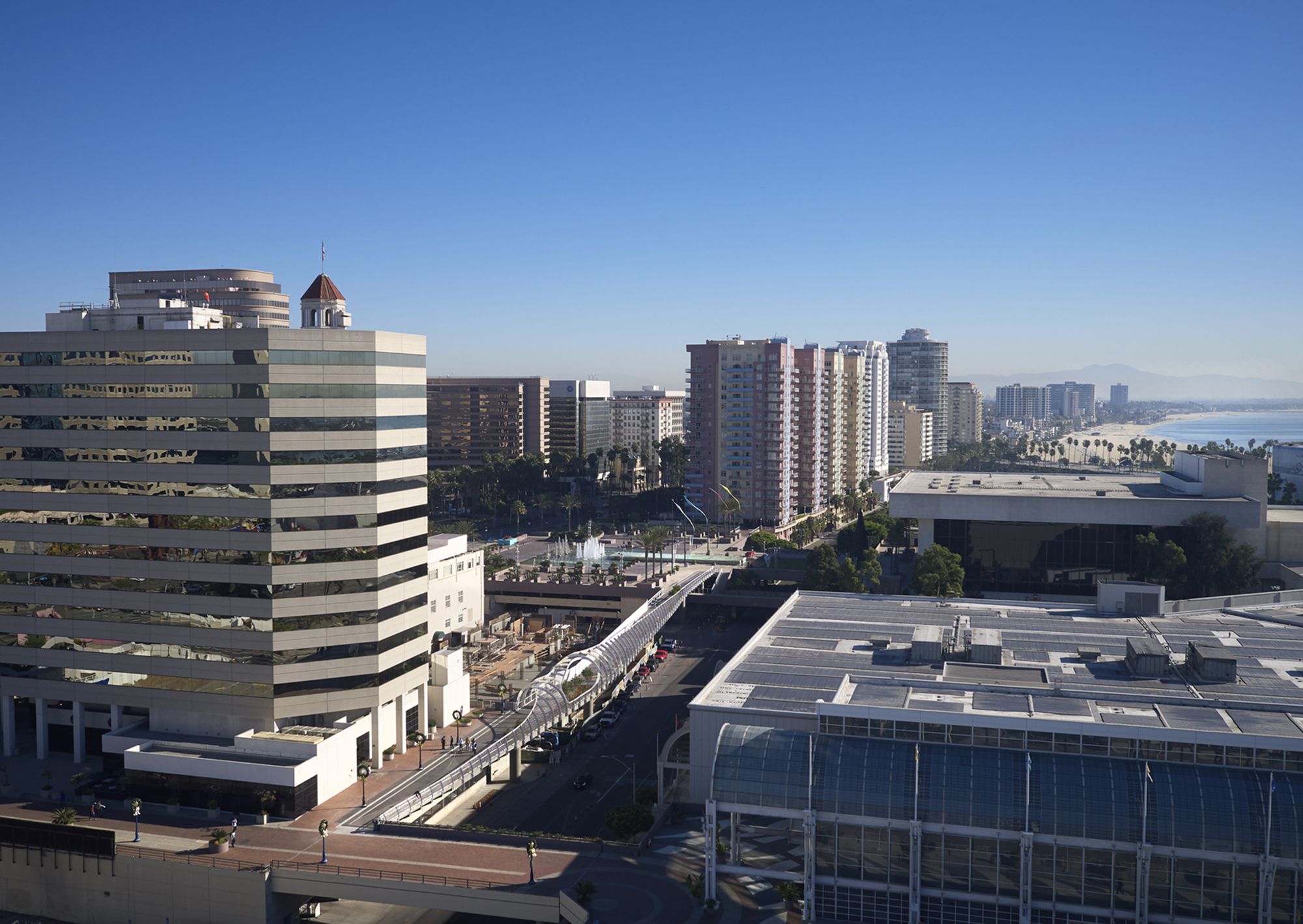

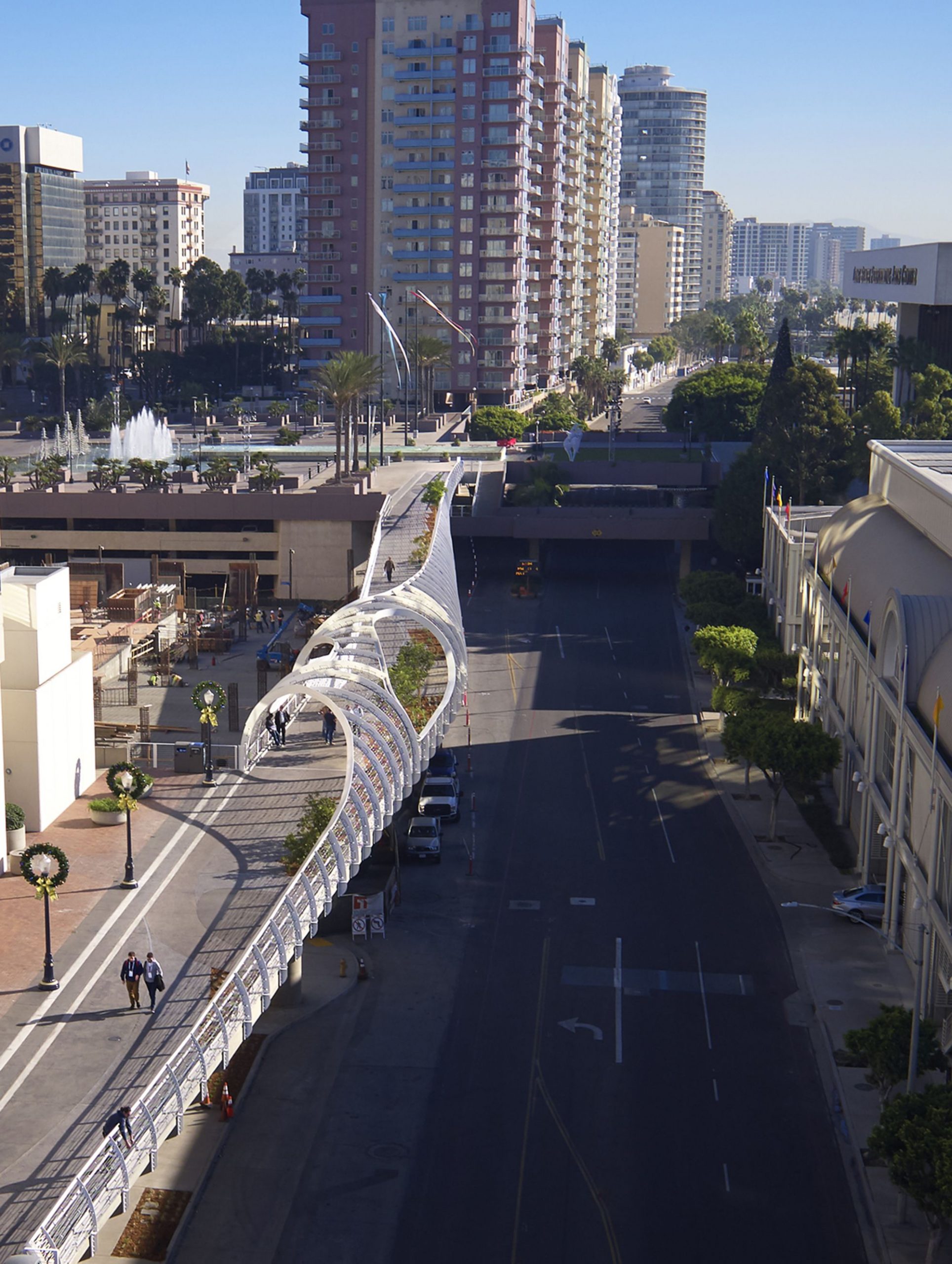

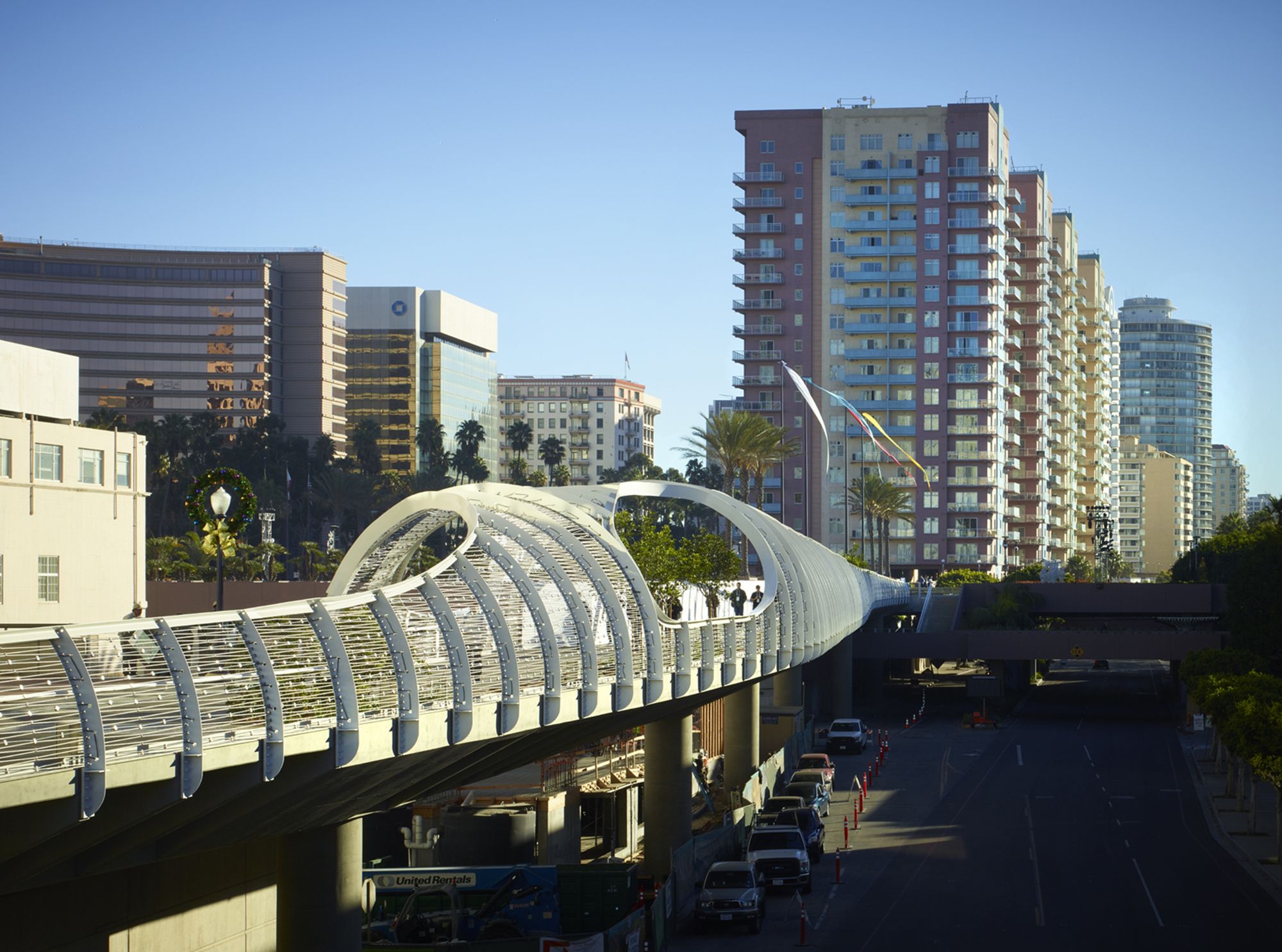

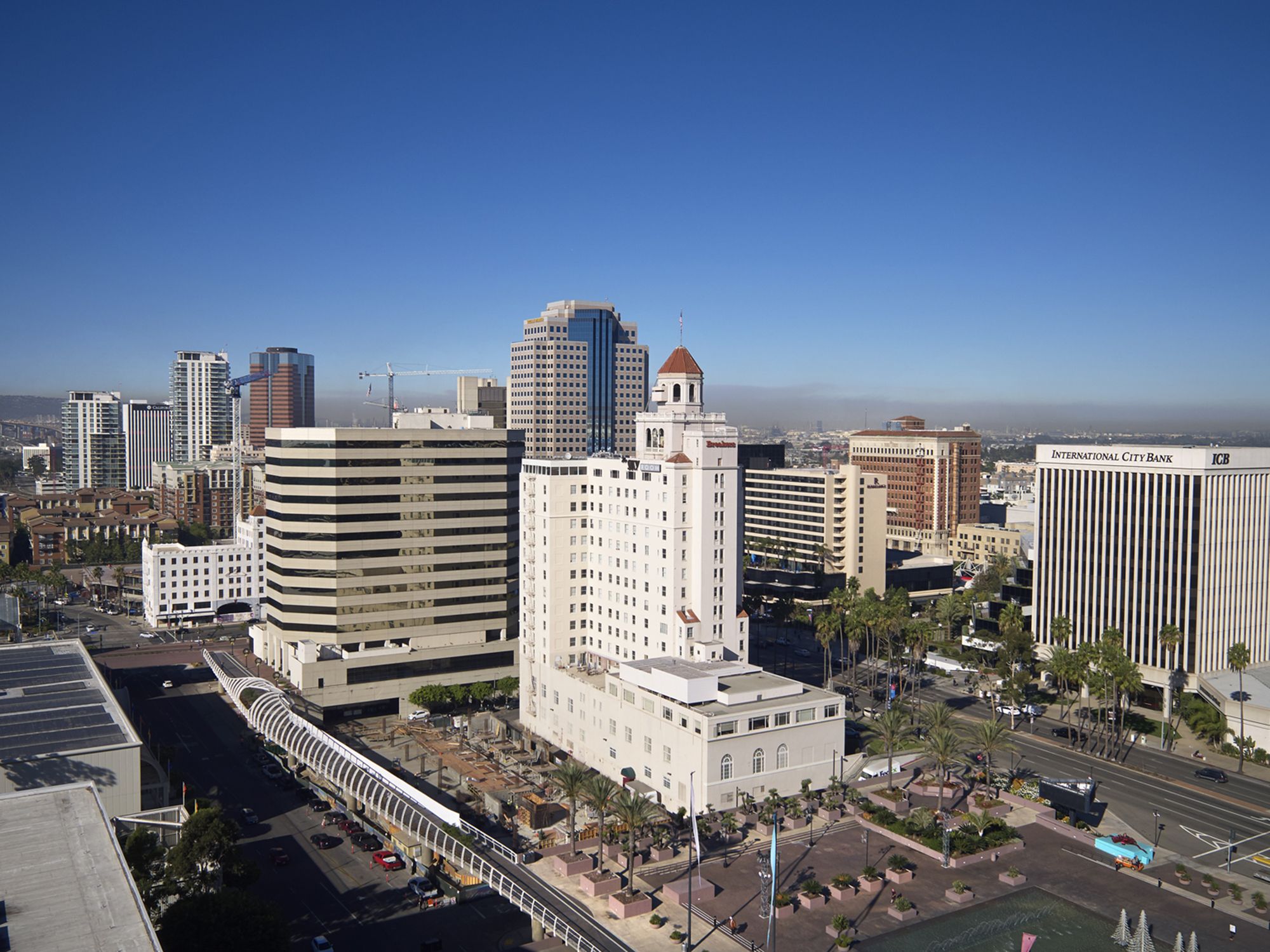

Designed by SPF: architects, The Long Beach Seaside Way Convention and Performing Arts Center Pedestrian Bridge, or Rainbow Bridge, provides a direct, public connection between two major Long Beach venues: the Long Beach Convention Center and the Long Beach Performing Arts Center. Before the construction of the bridge, moving between the two destinations demanded climbing numerous flights of stairs and to cross a stretch of Seaside Way dominated by loading docks and HVAC equipment.

Photography by © John Linden

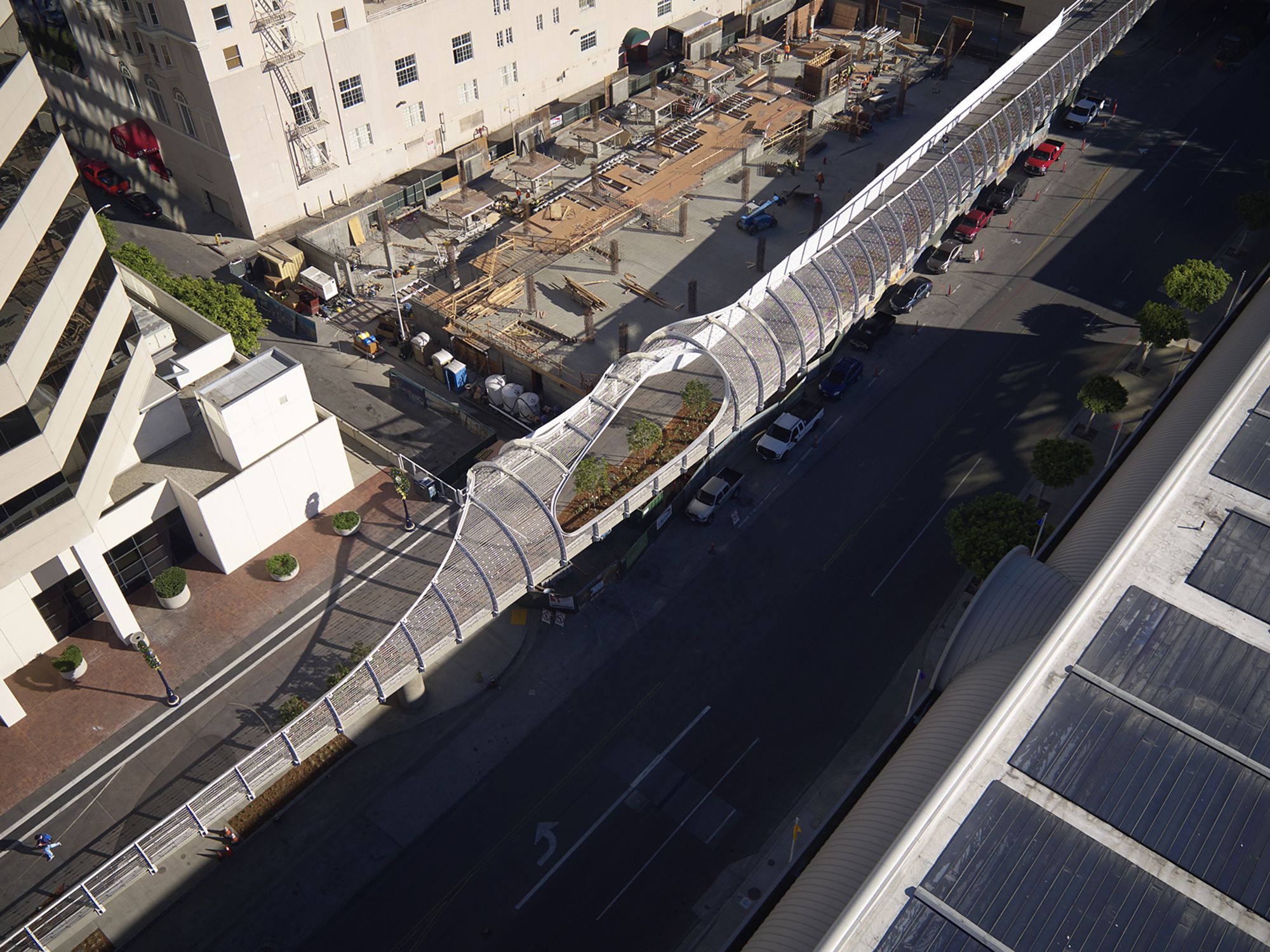

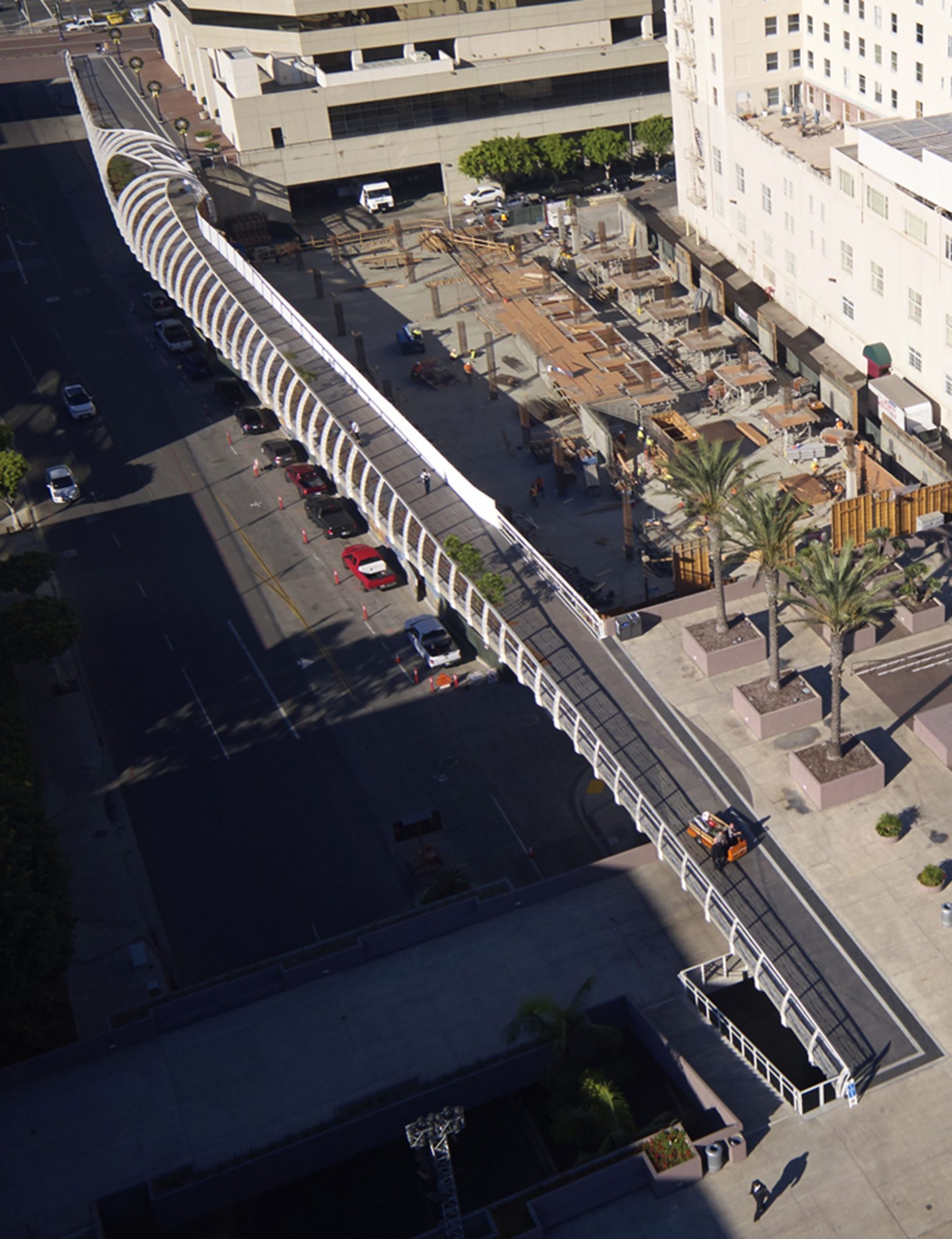

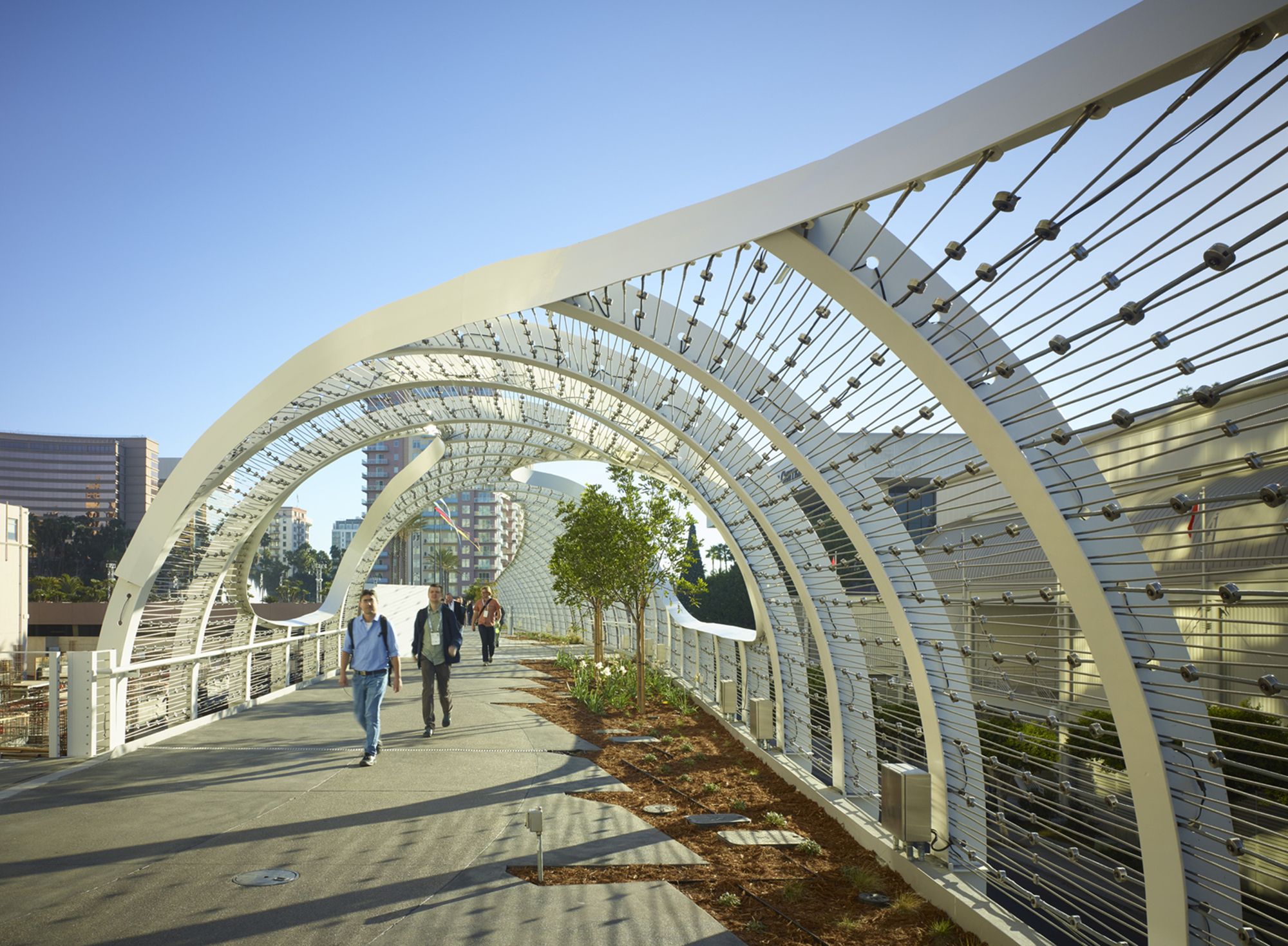

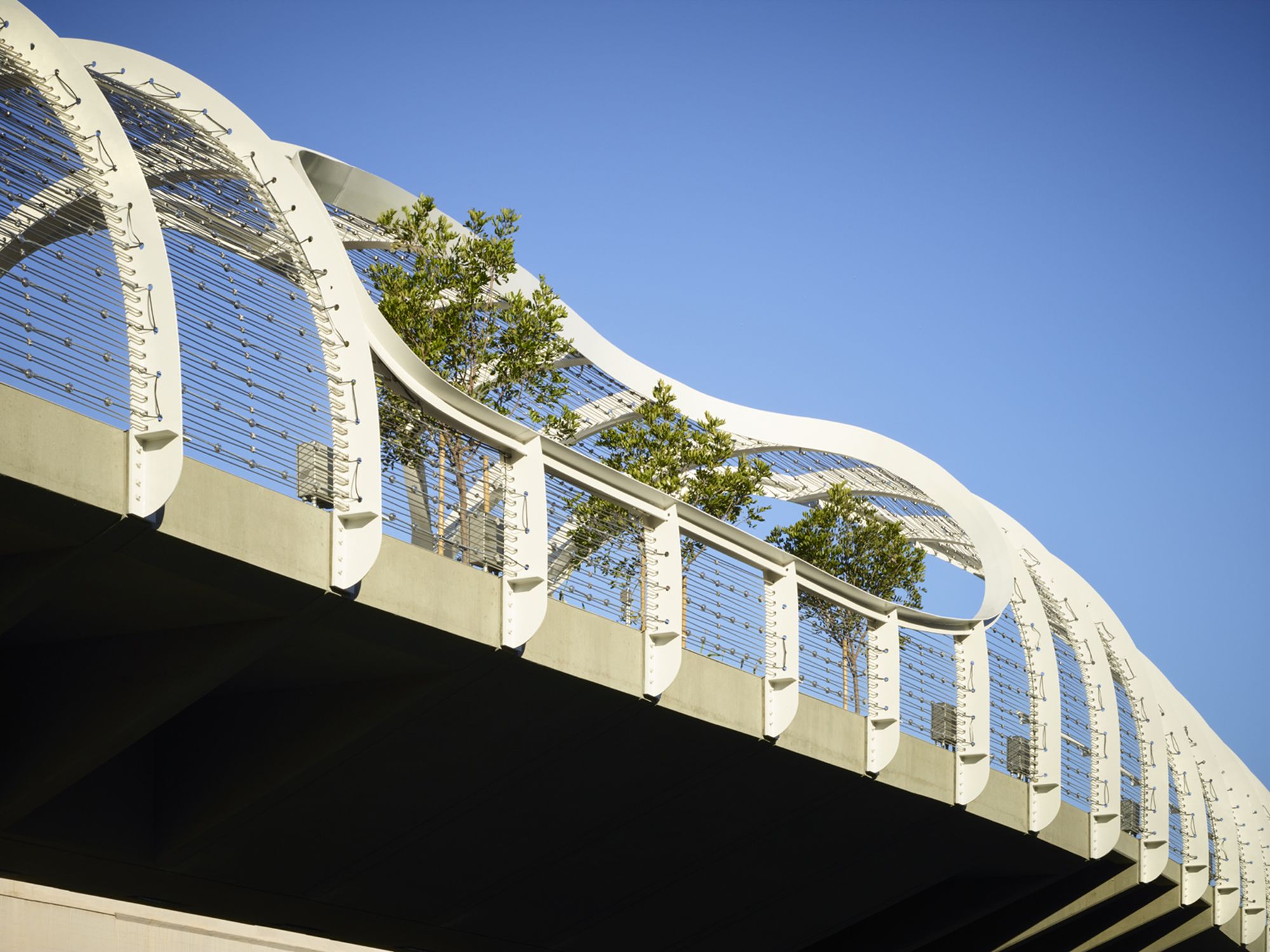

The initial solution proposed by SPF: a was to build an elevated sidewalk between the two centers, but following an overwhelming response to the RFQ issued by the city, SPF: a chose to pursue a complete public amenity. The finished project is a spectacular 600-foot pedestrian bridge consisting of 76 custom-welded bent-steel ribs framing the top, and approximately 1,200 cubic yards of poured-in-place concrete shaping the base.

Photography by © John Linden

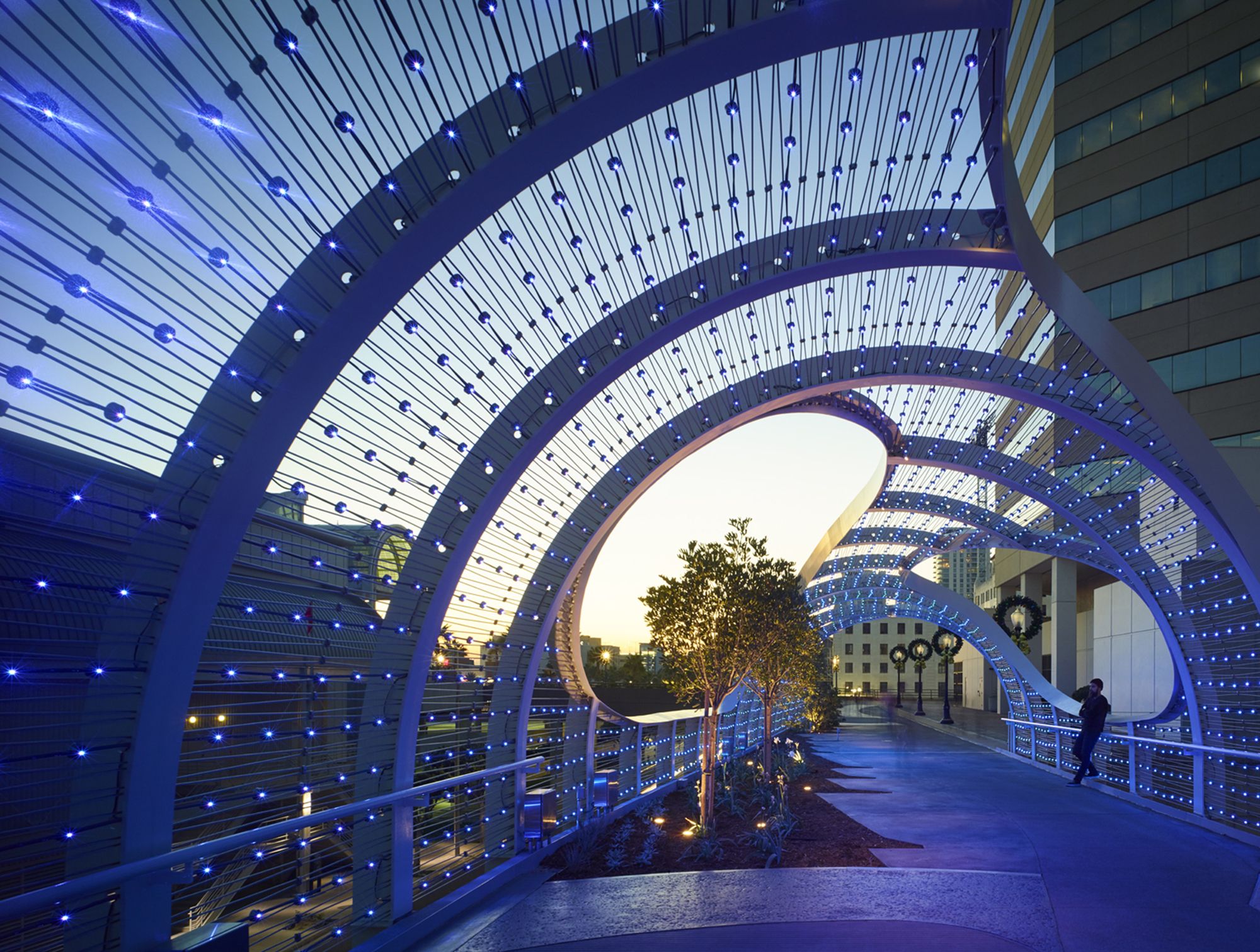

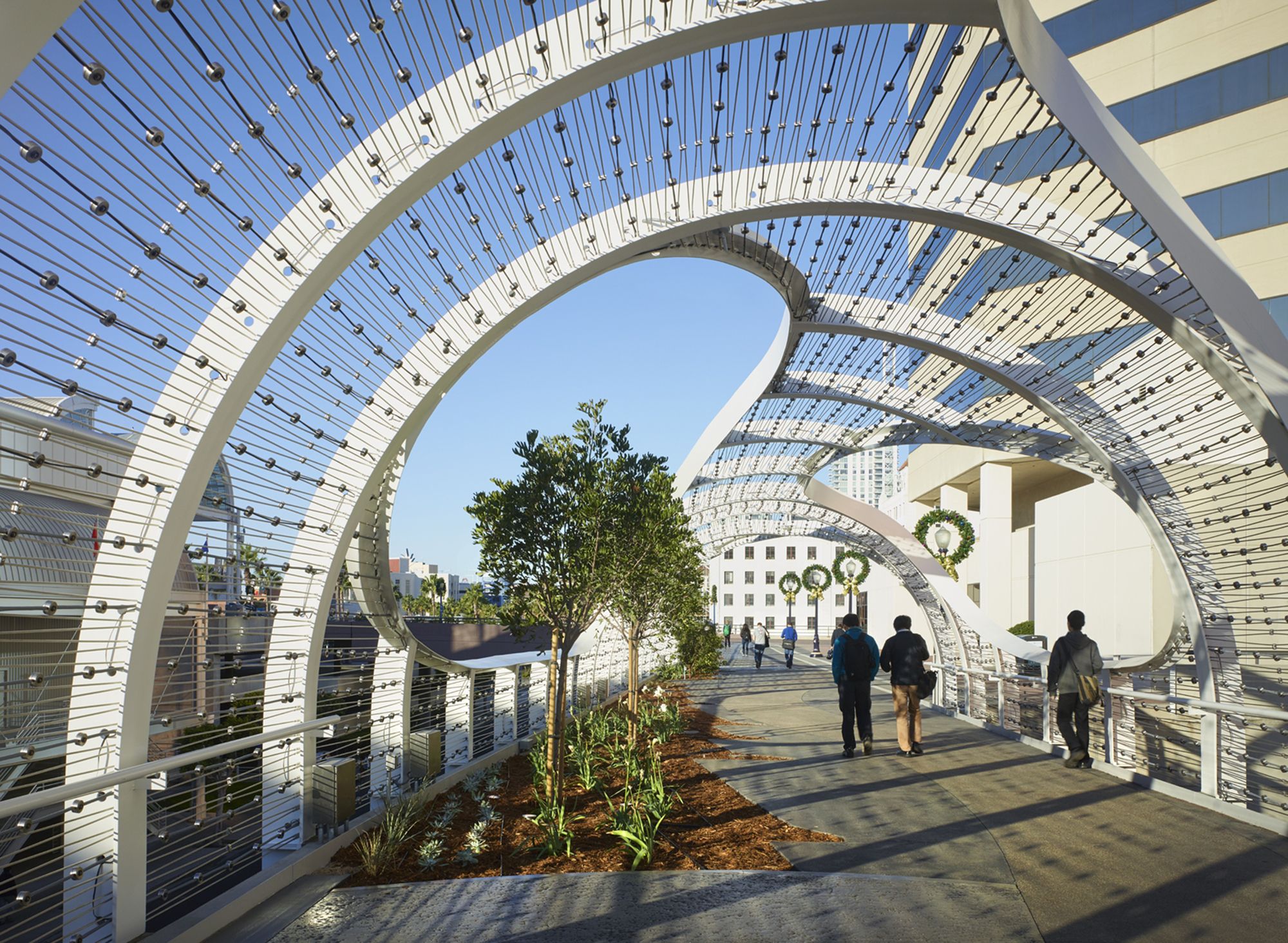

The bridge canopy features 3,500 color-changing LEED node lights, 100 downlights, and 70 floodlights, all of which can be programmed and synched to music to create different effects.

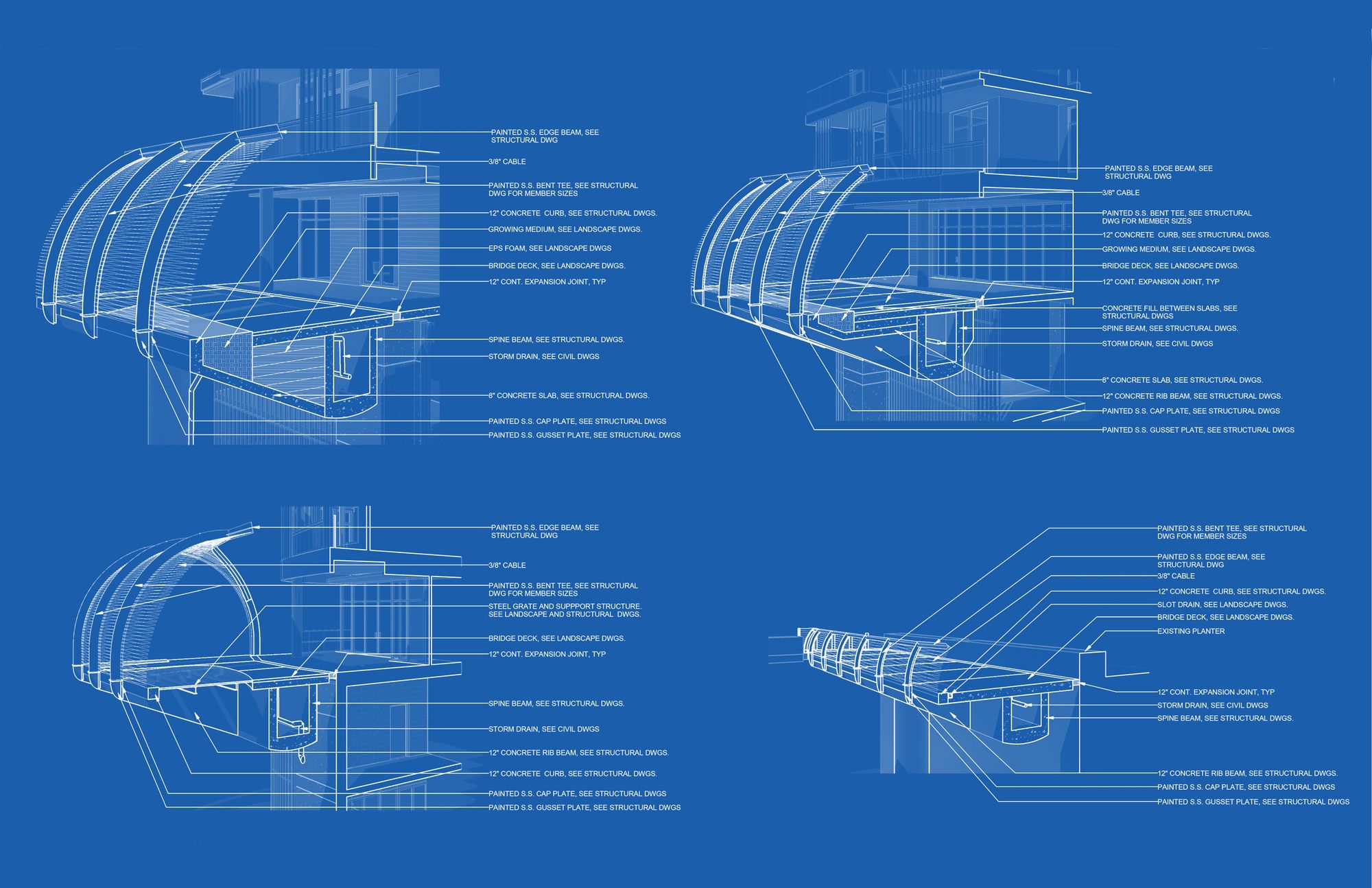

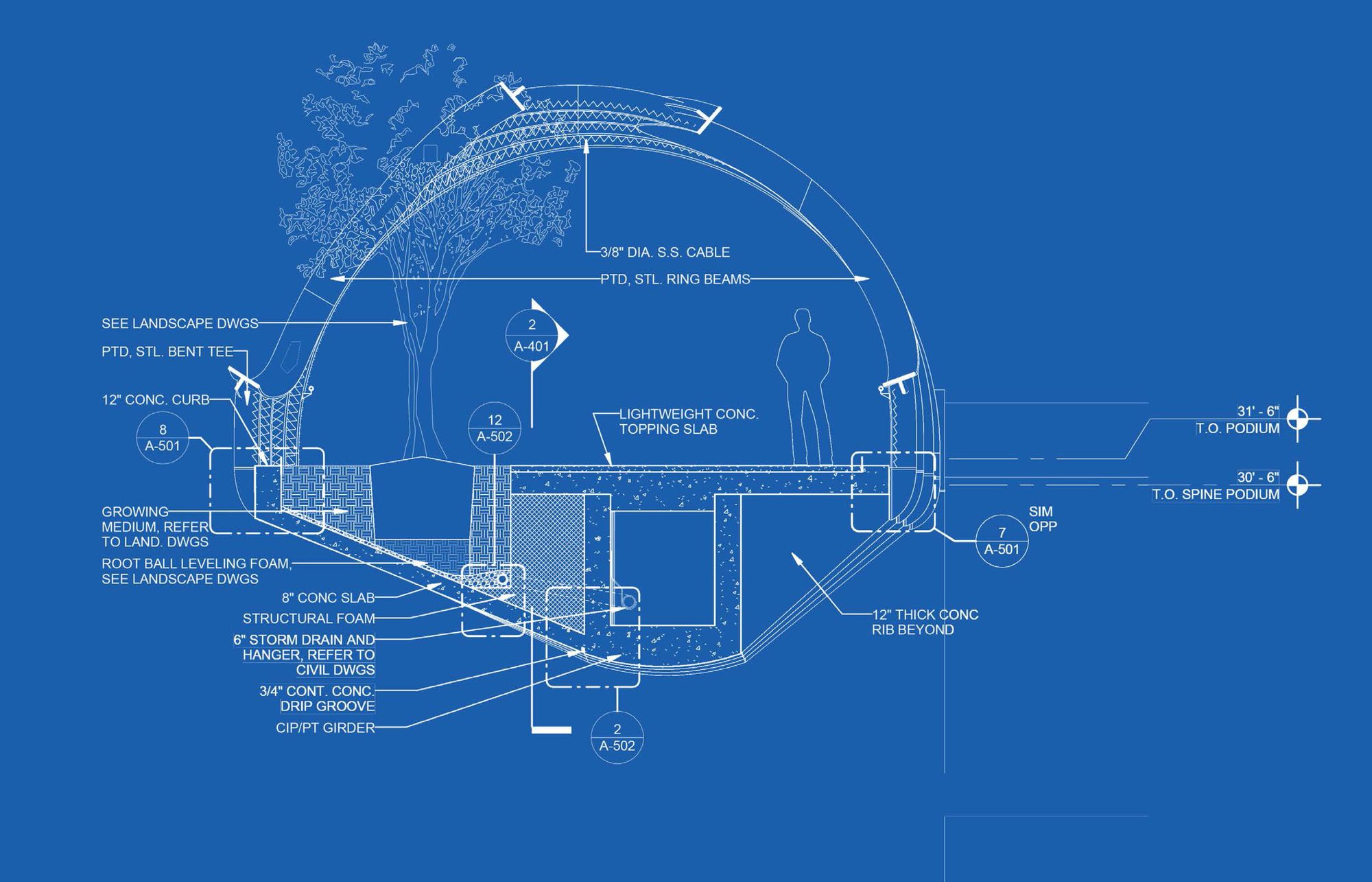

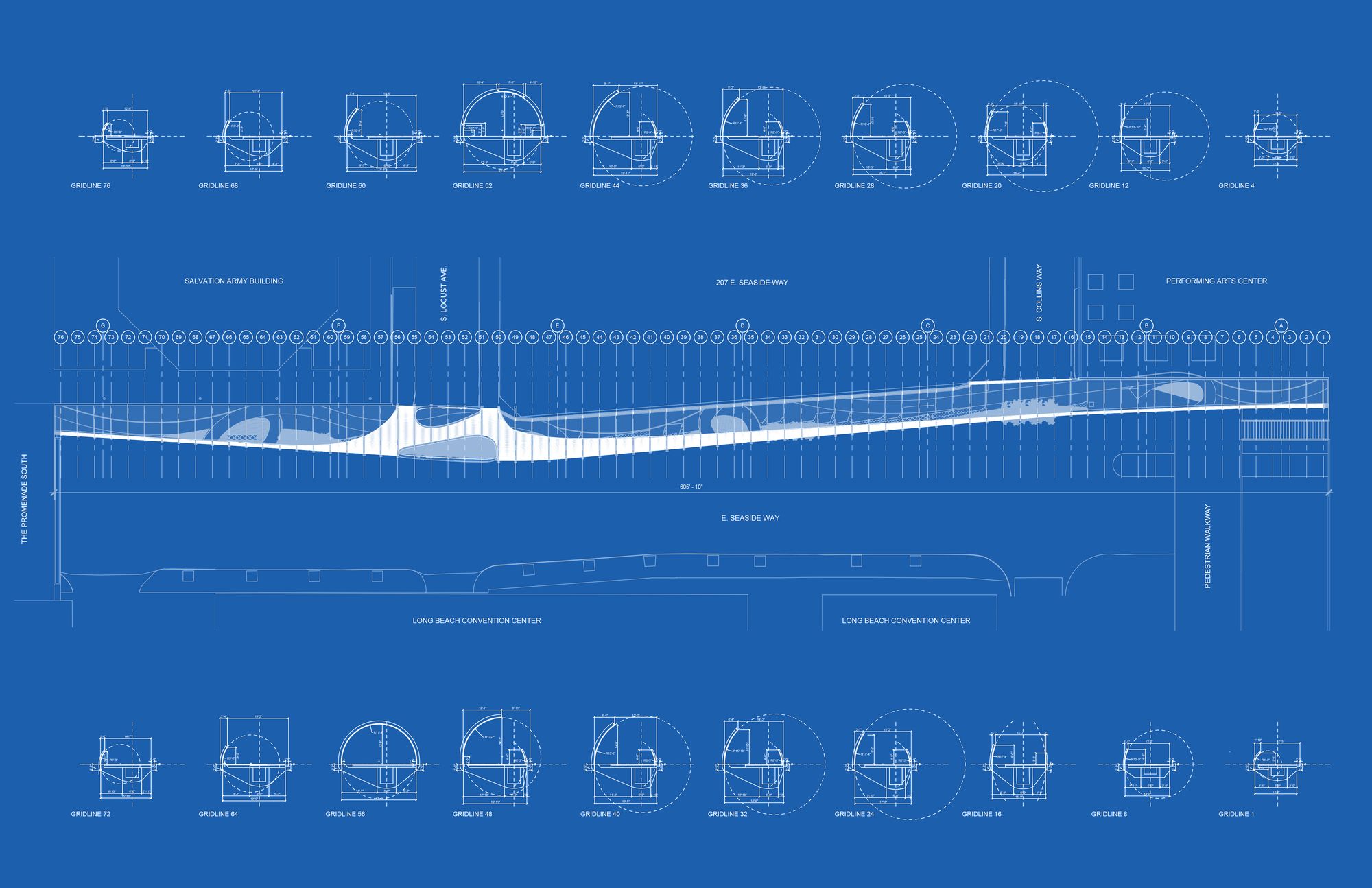

Section

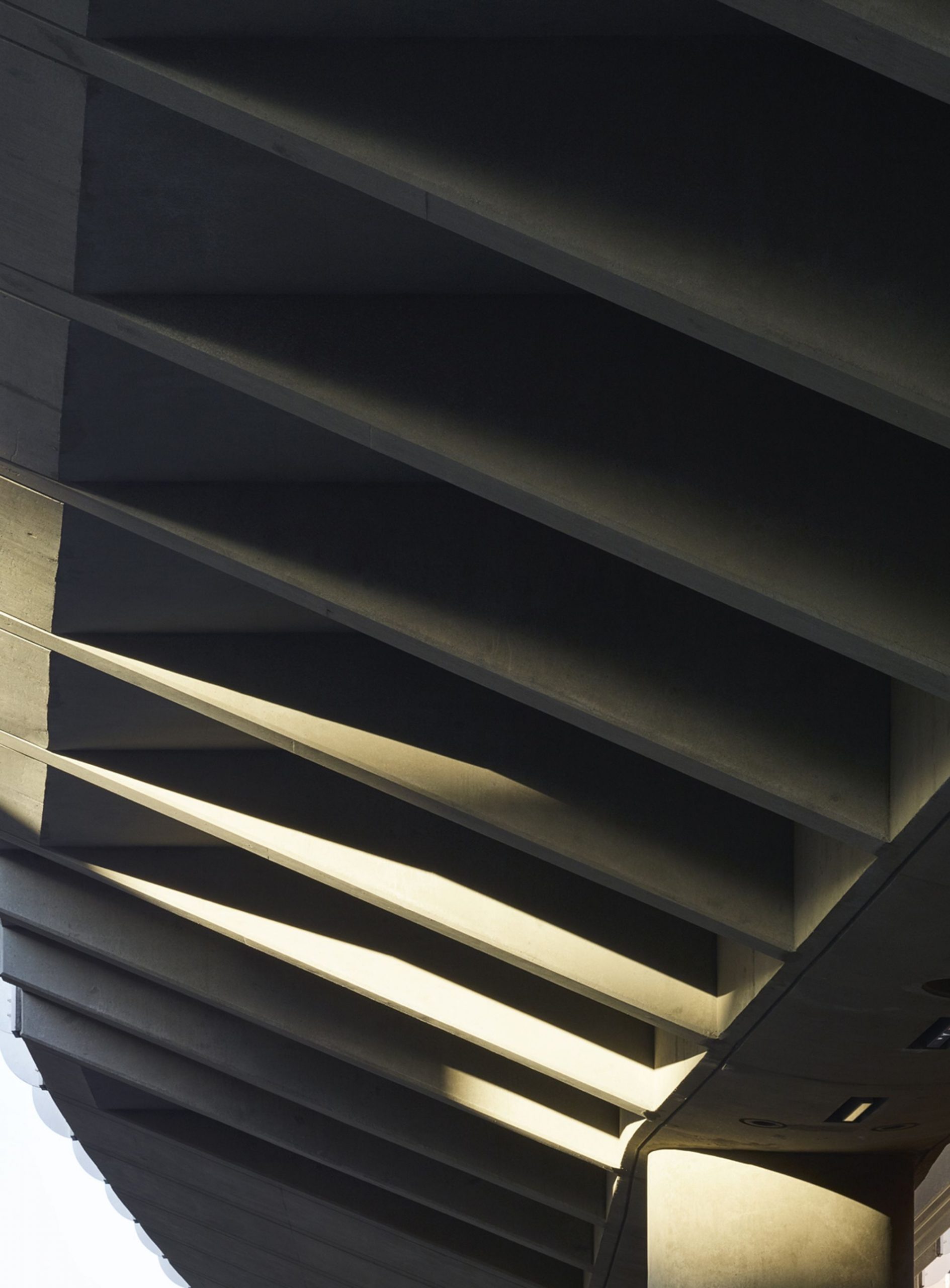

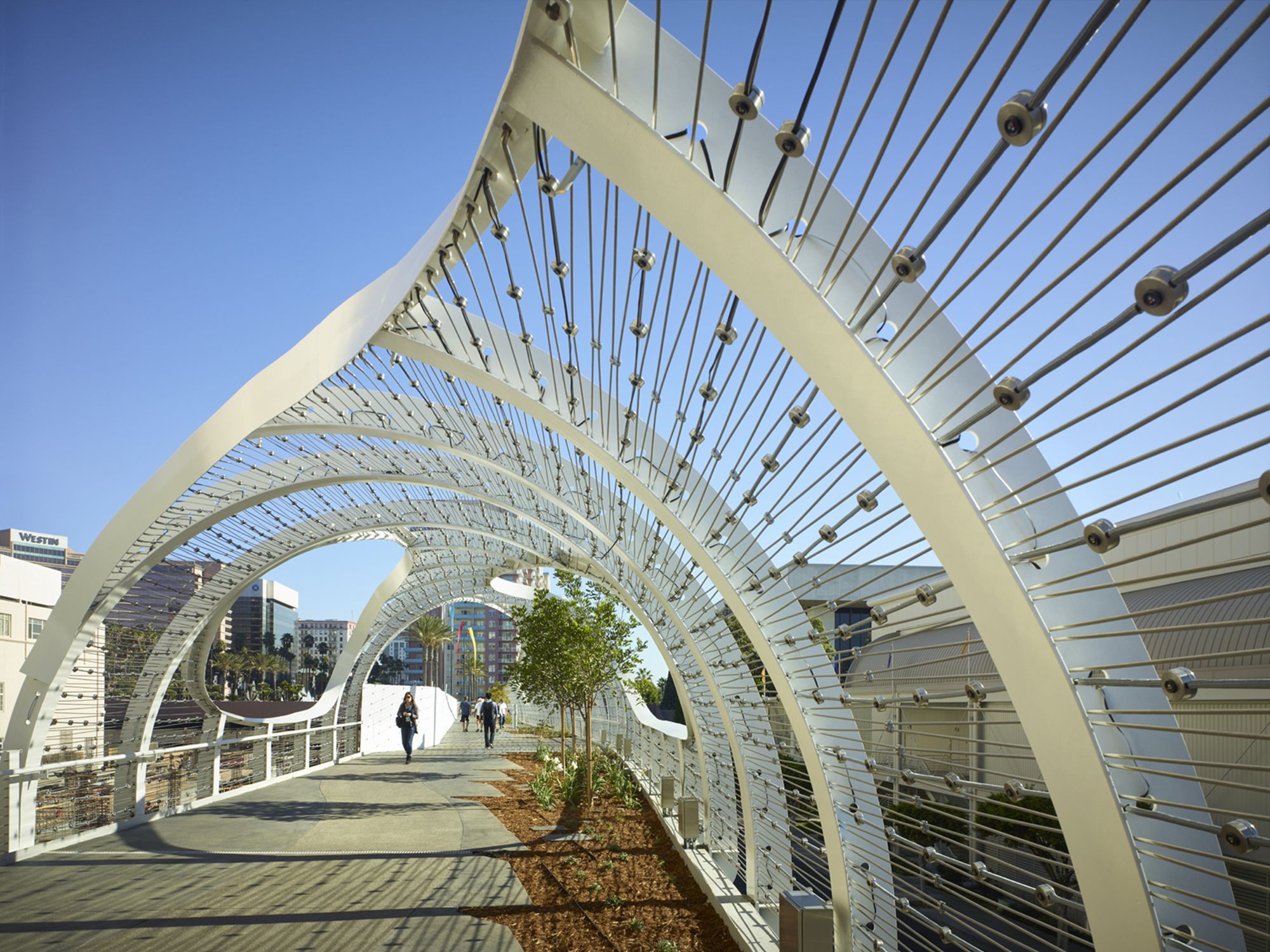

SPF: a worked closely with Carl Stahl Architektur to create the custom, three-piece, stainless steel node clip that allows for the bridge’s LEED wiring to attach to the canopy. The unique design also allows for ease of installation and replacement flexibility. Power and drainage for the walkway plantings have been hidden within the concrete spine of the bridge.

Photography by © John Linden

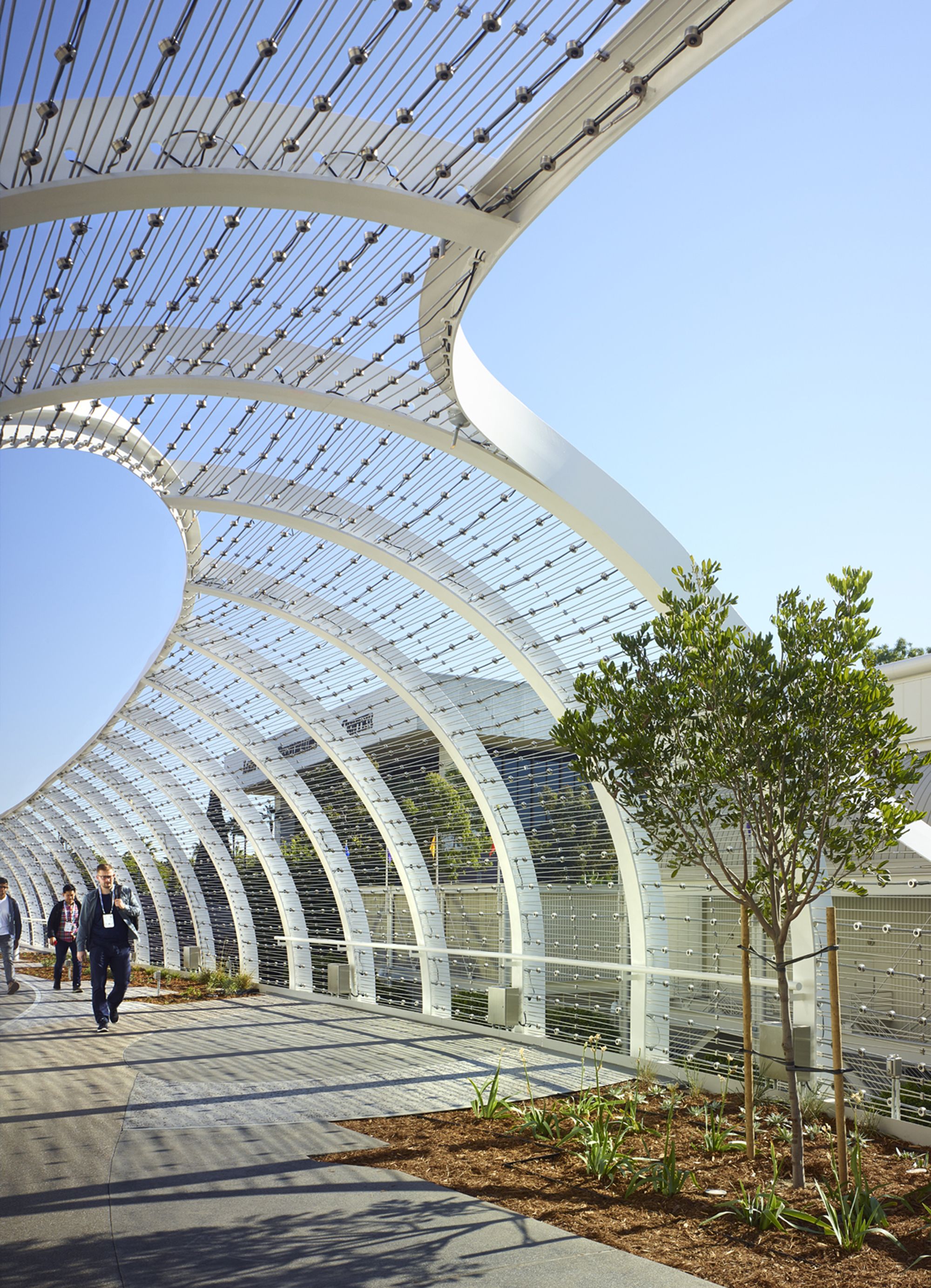

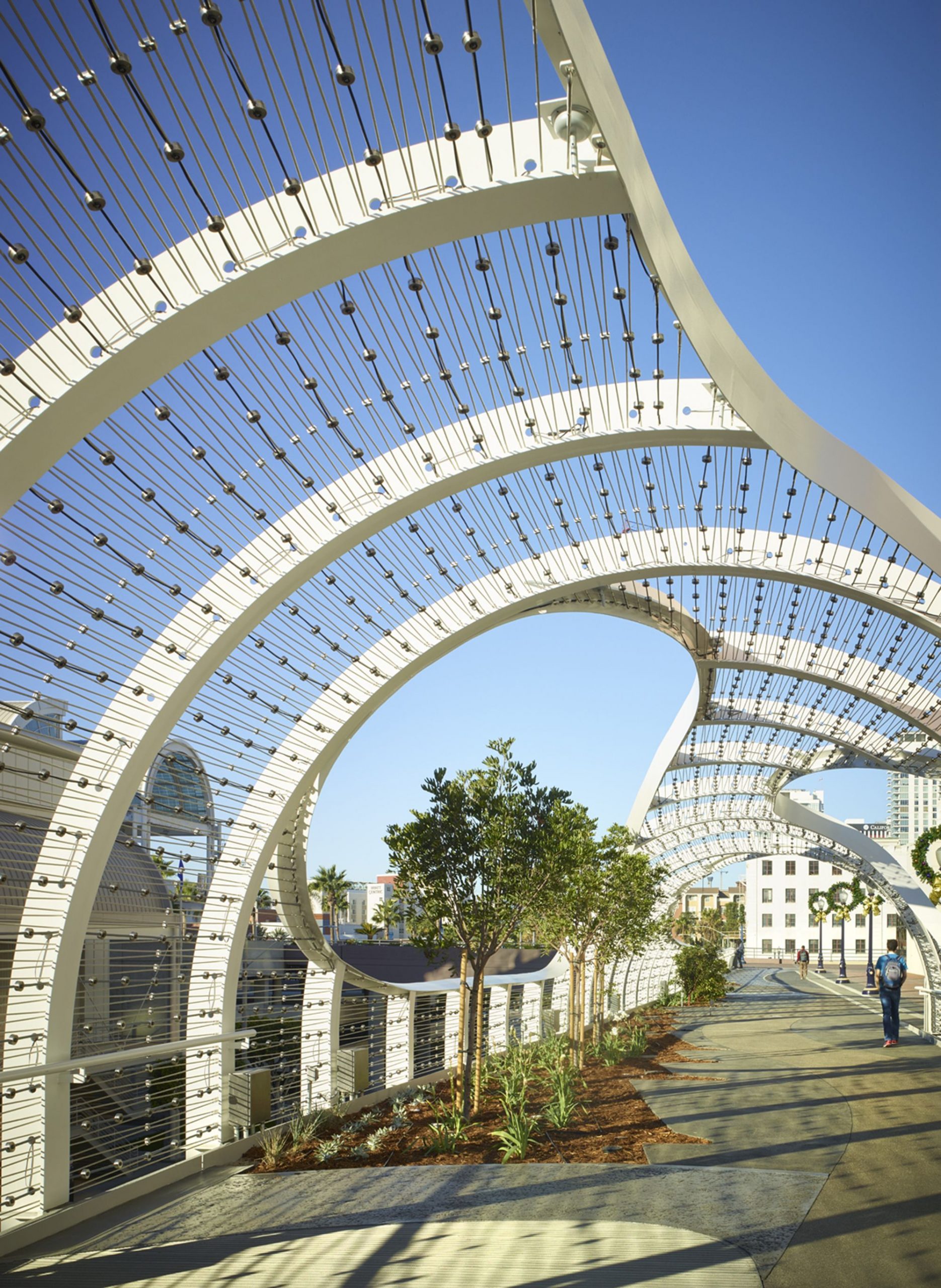

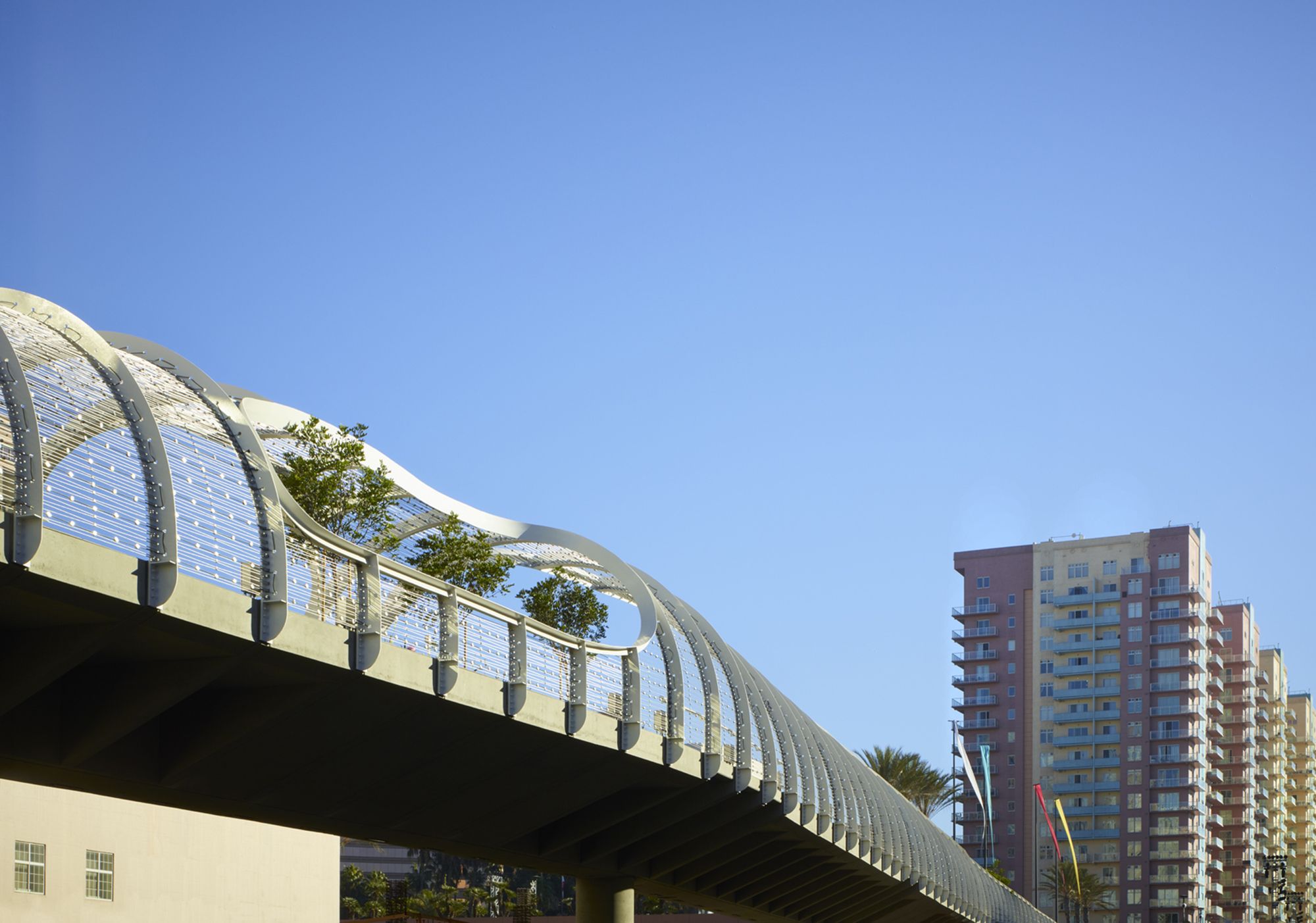

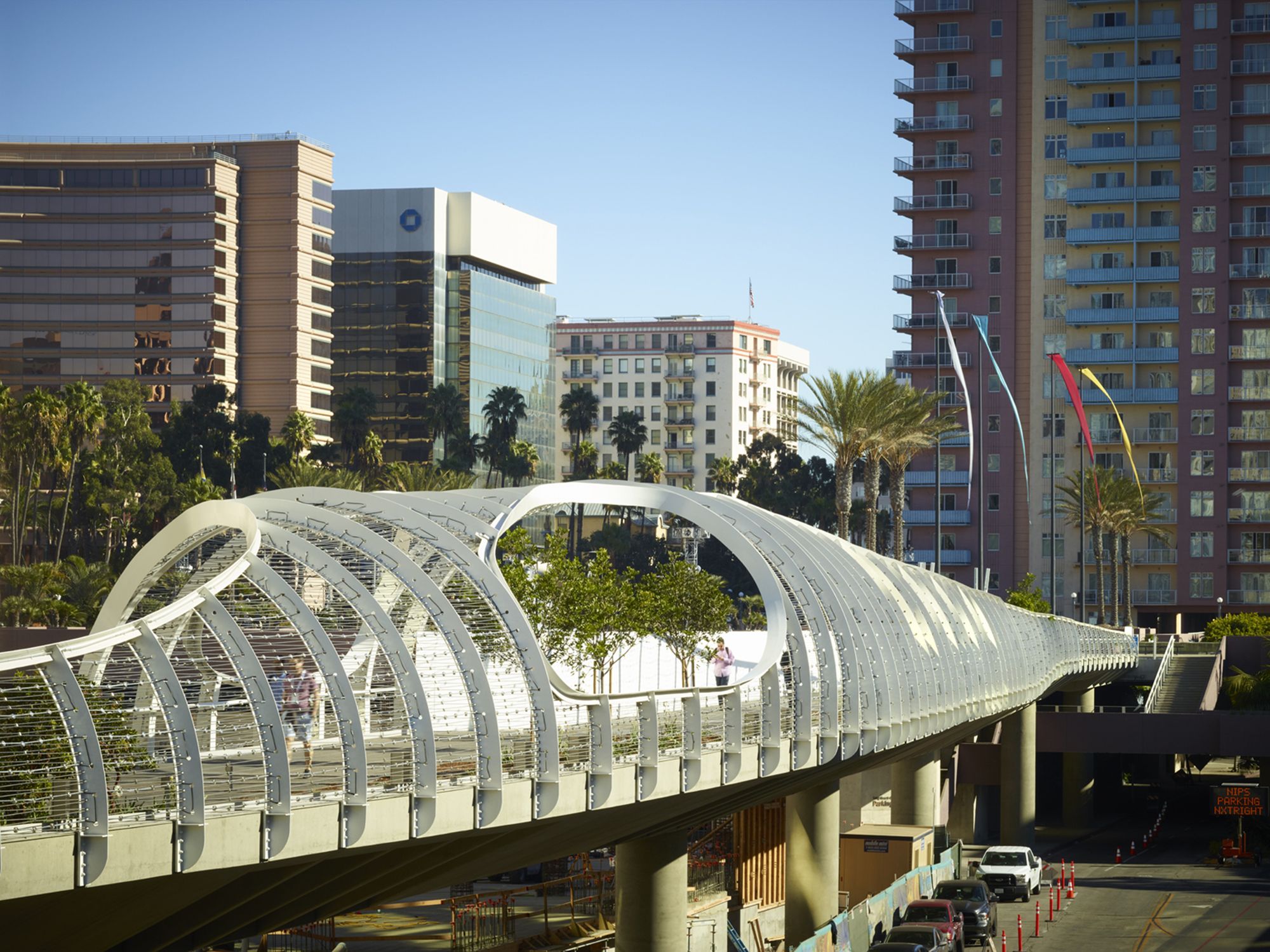

The overall design is heavily influenced by its beach surroundings (the bridge was, in fact, first dubbed “Riptide”). Structural elements such as the hull-like formation have been married with the elegance and uniformity found in waves, while the Leeds were affixed to cables to convey a net-like feeling or the rigging of a ship.

Photography by © John Linden

Project Info:
Architects: SPF: architects
Location: Long Beach, CA, United States
Lead Architects: Zoltan E. Pali, FAIA,  Siddhartha Majumdar, AIA, Judit Fekete, Adam Sauer, AIA. Ileana Acevedo, Michael Lindell
Area: 10800.0 ft2
Project Year: 2017
Photographs: John Linden
Manufacturers: B-K Lighting, Lumenpulse
Project Name: The Rainbow Bridge
