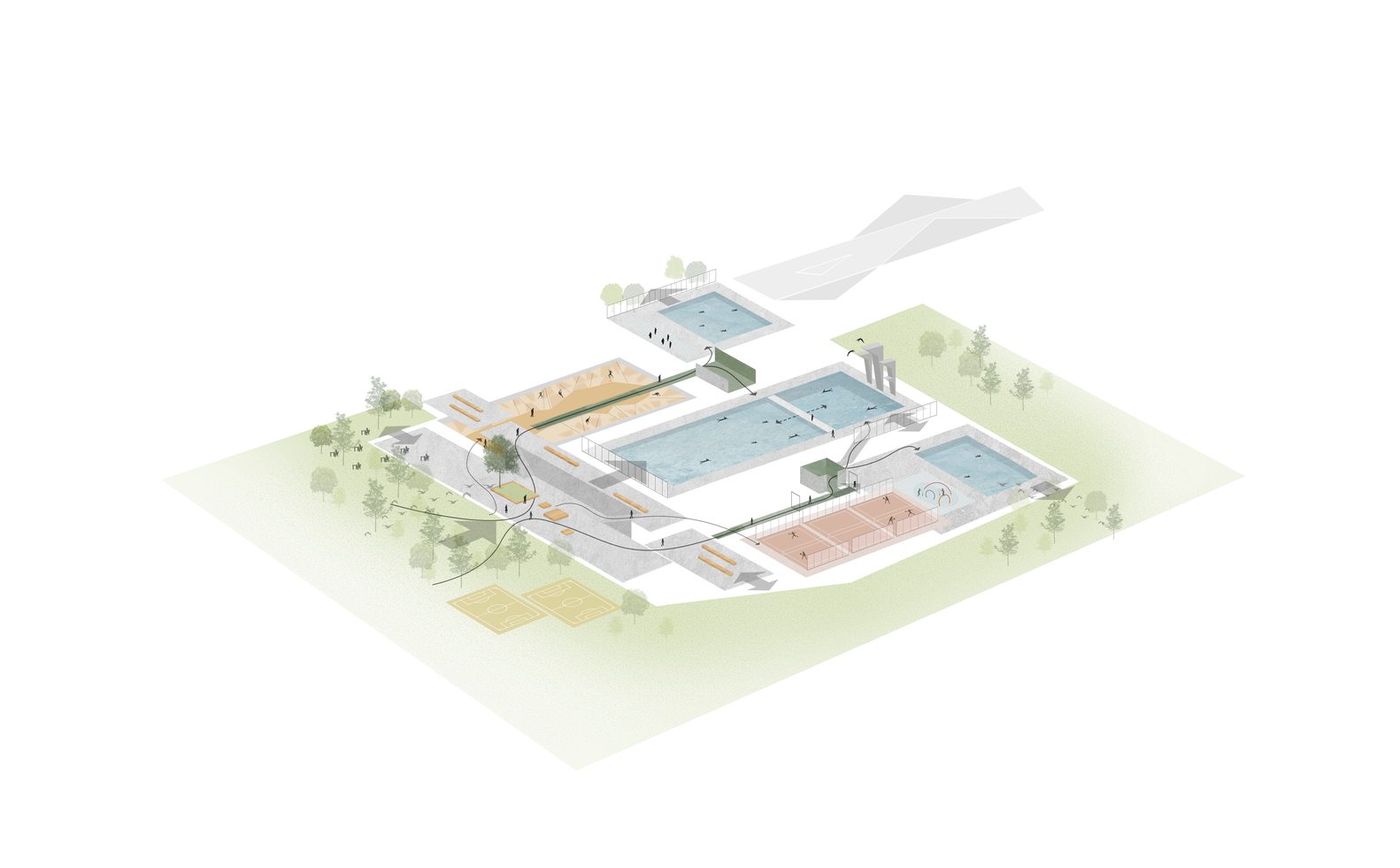

The Aquatics Centre goes beyond environmental regulations and requirements. Sustainability and biodiversity are key in all aspects its design. It is a modern and innovative sports complex surrounded by abundant vegetation that seriously contributes to a livable and healthy city district for the people in Saint-Denis. To also stimulate a healthy lifestyle after the Games, the building will be open and transparent and accommodate a wide range of sports and events, both indoor and outdoor.

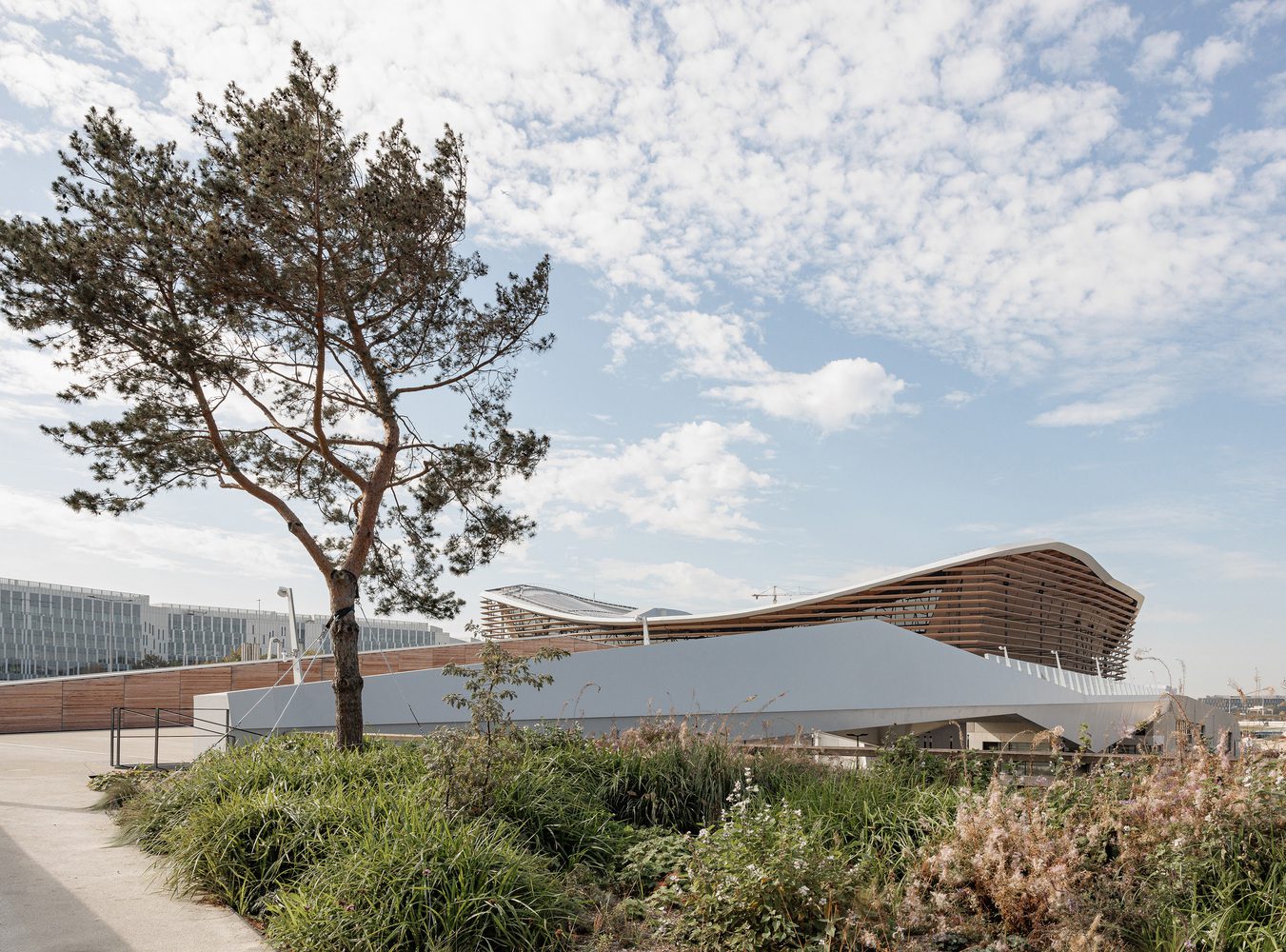

Nature was the main inspiration for the design concept. Nature is continuously evolving and adapting to changing circumstances, resulting in harmonious and balanced ecosystems. The Aquatics Centre invites nature itself in the heart of the new ‘city-district-in-the-making’ of Saint-Denis. This very compact proposal creates room for one hundred trees that will be planted to improve the quality of life and air, stimulate biodiversity and create new ecological connections.

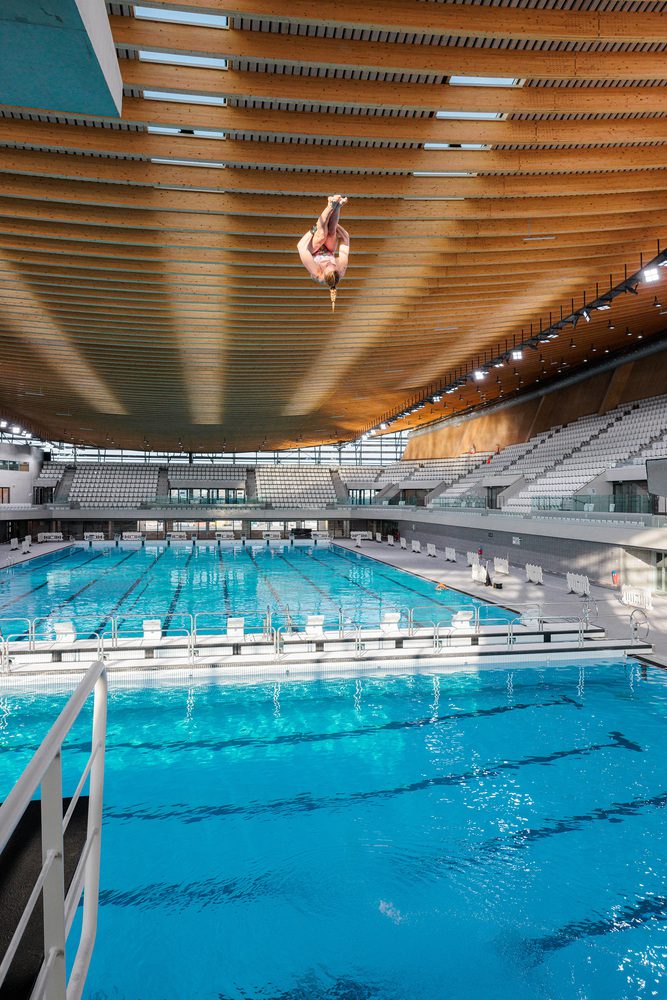

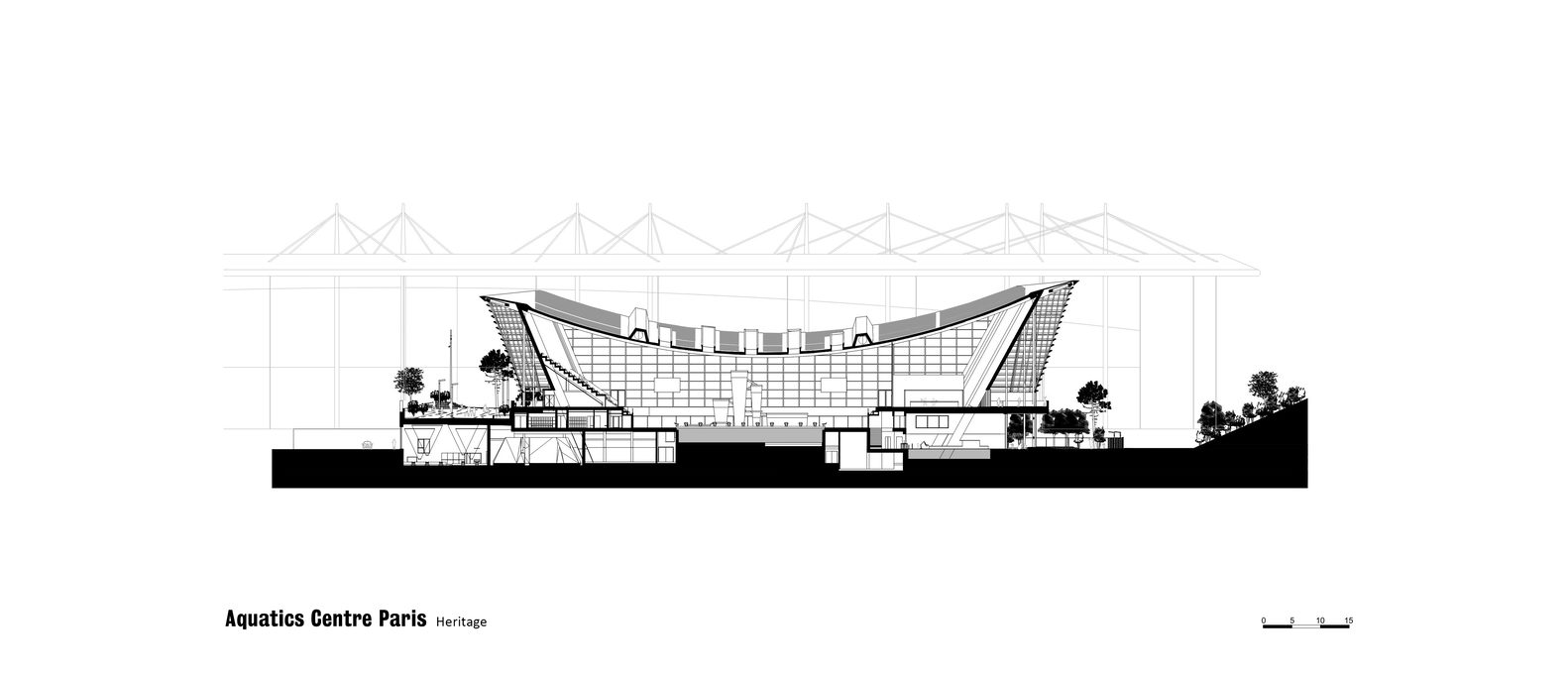

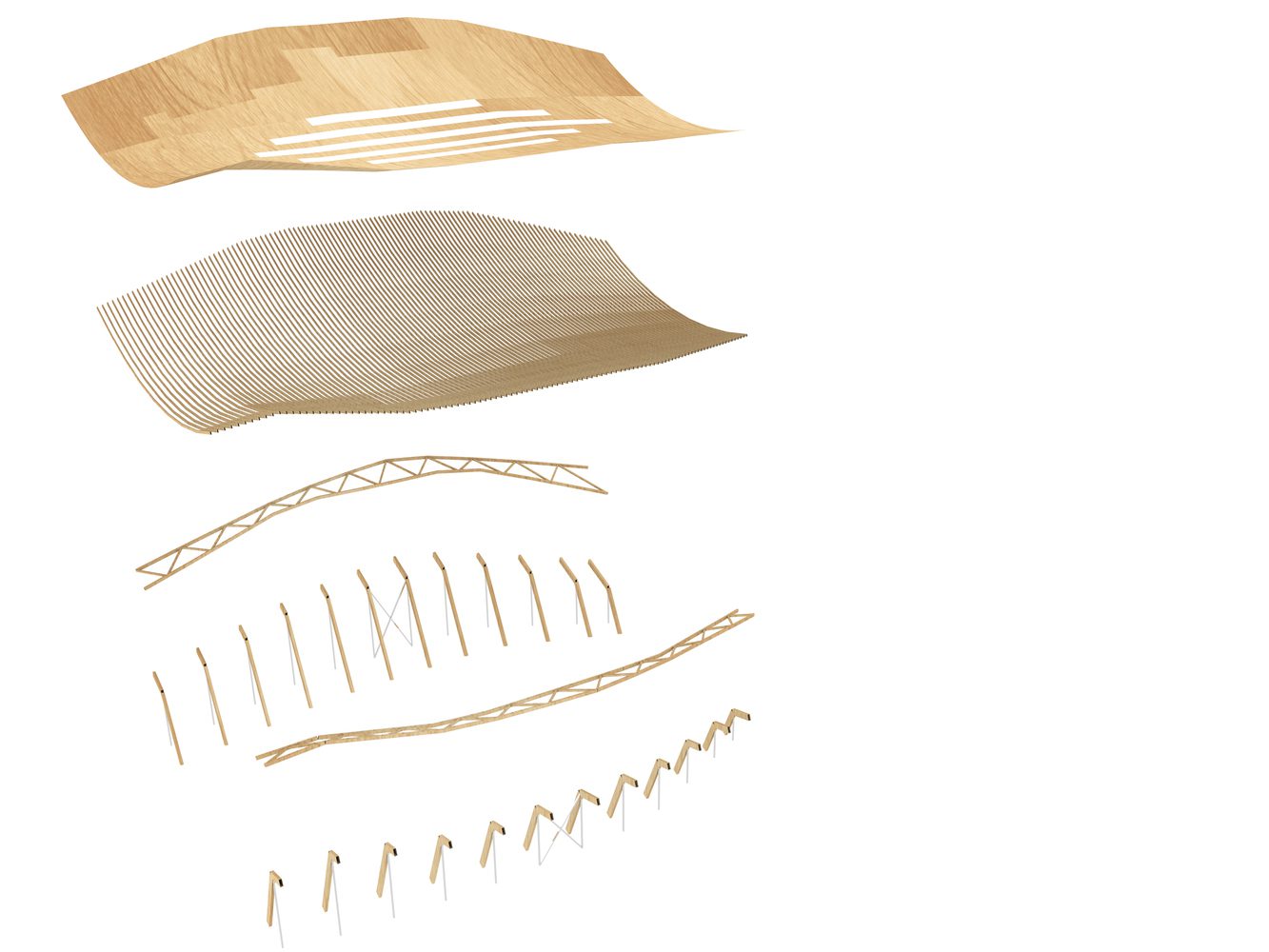

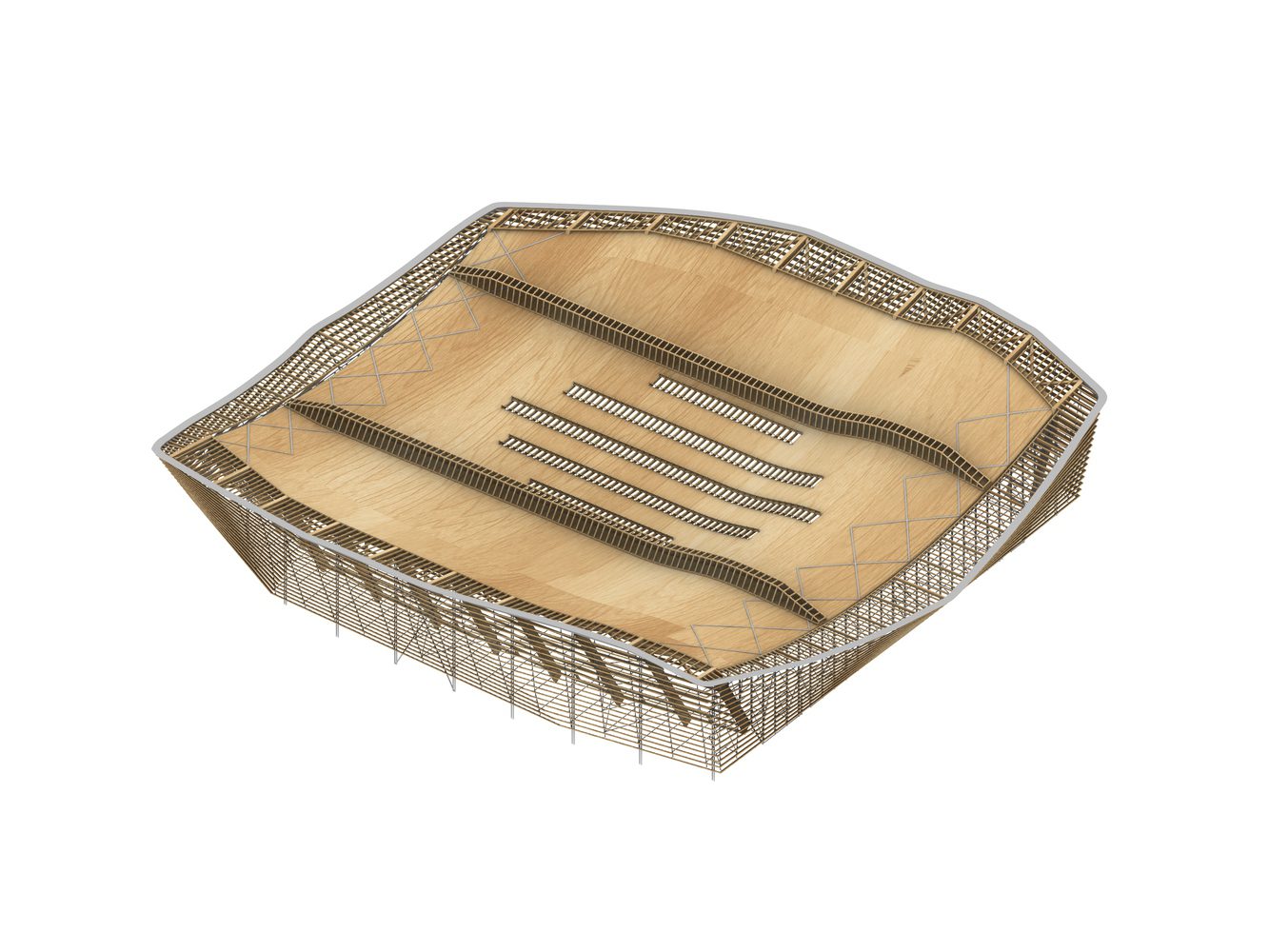

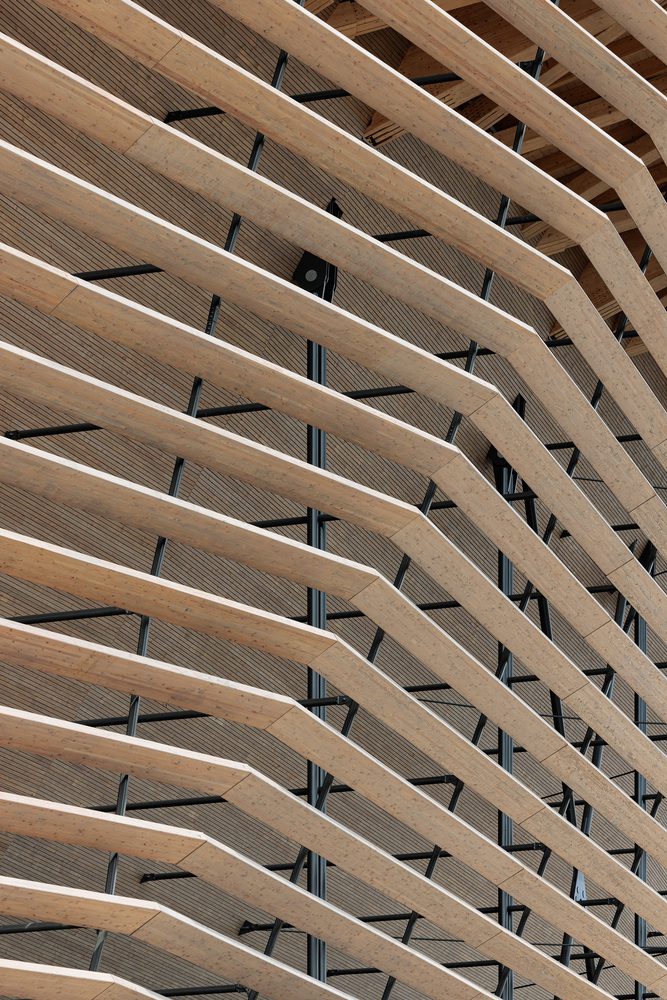

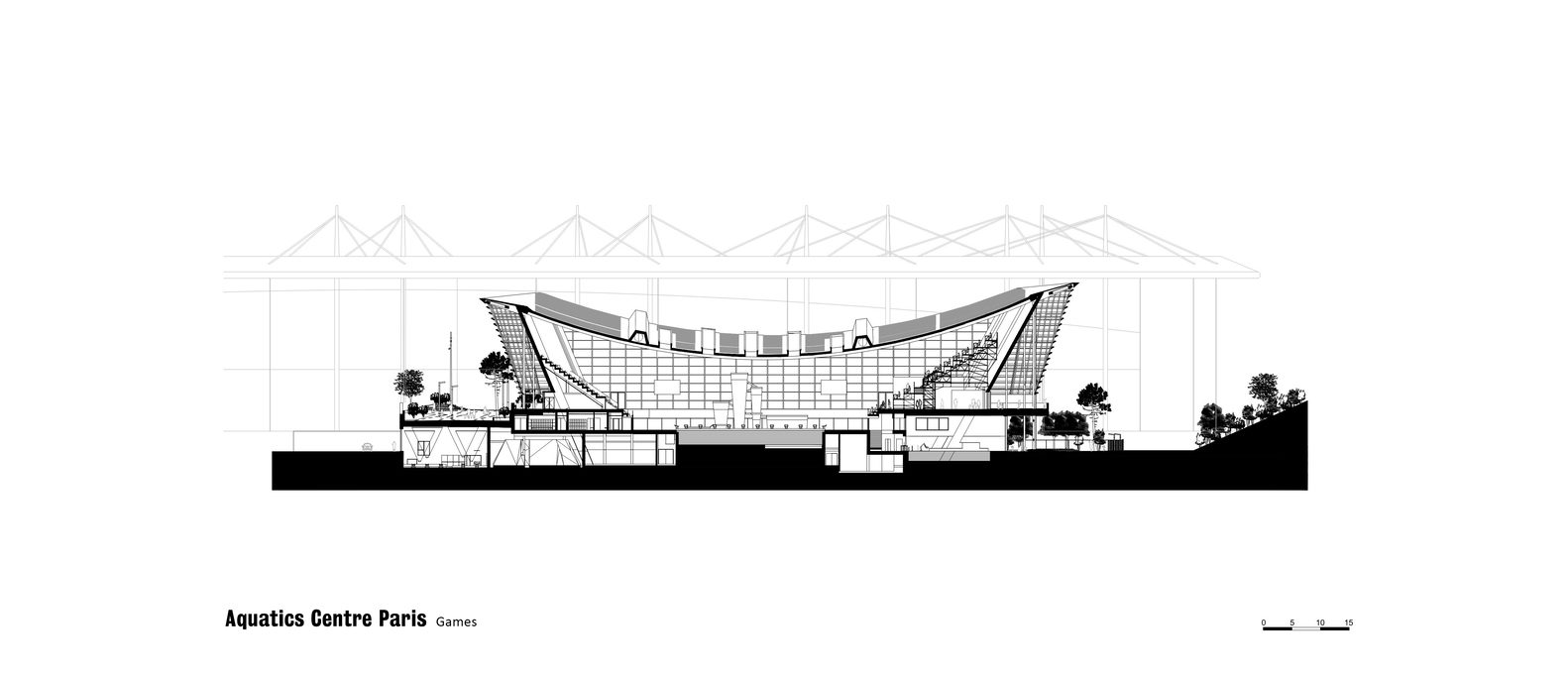

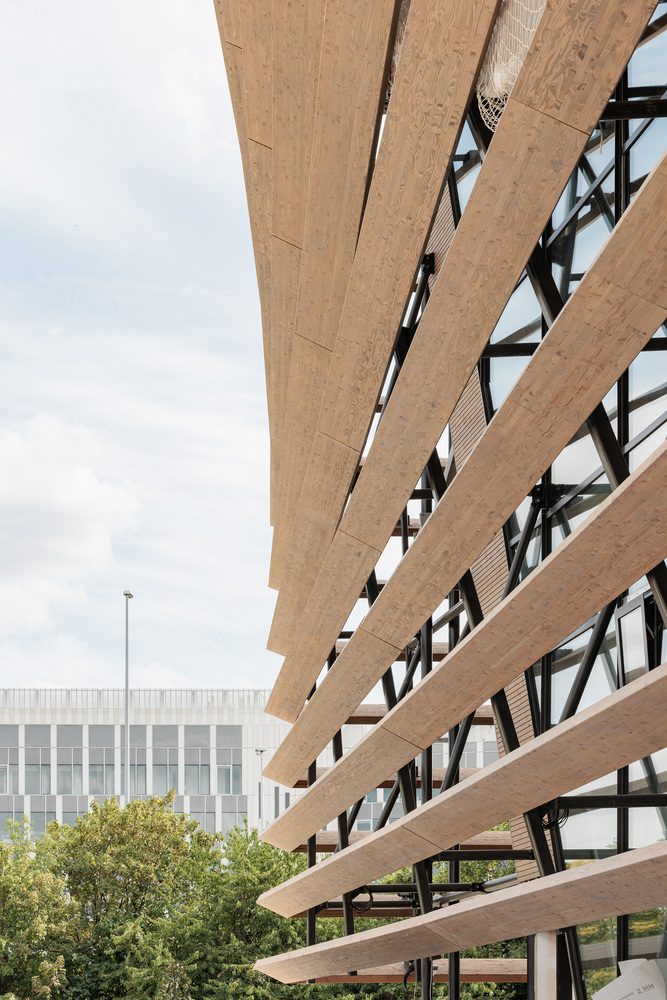

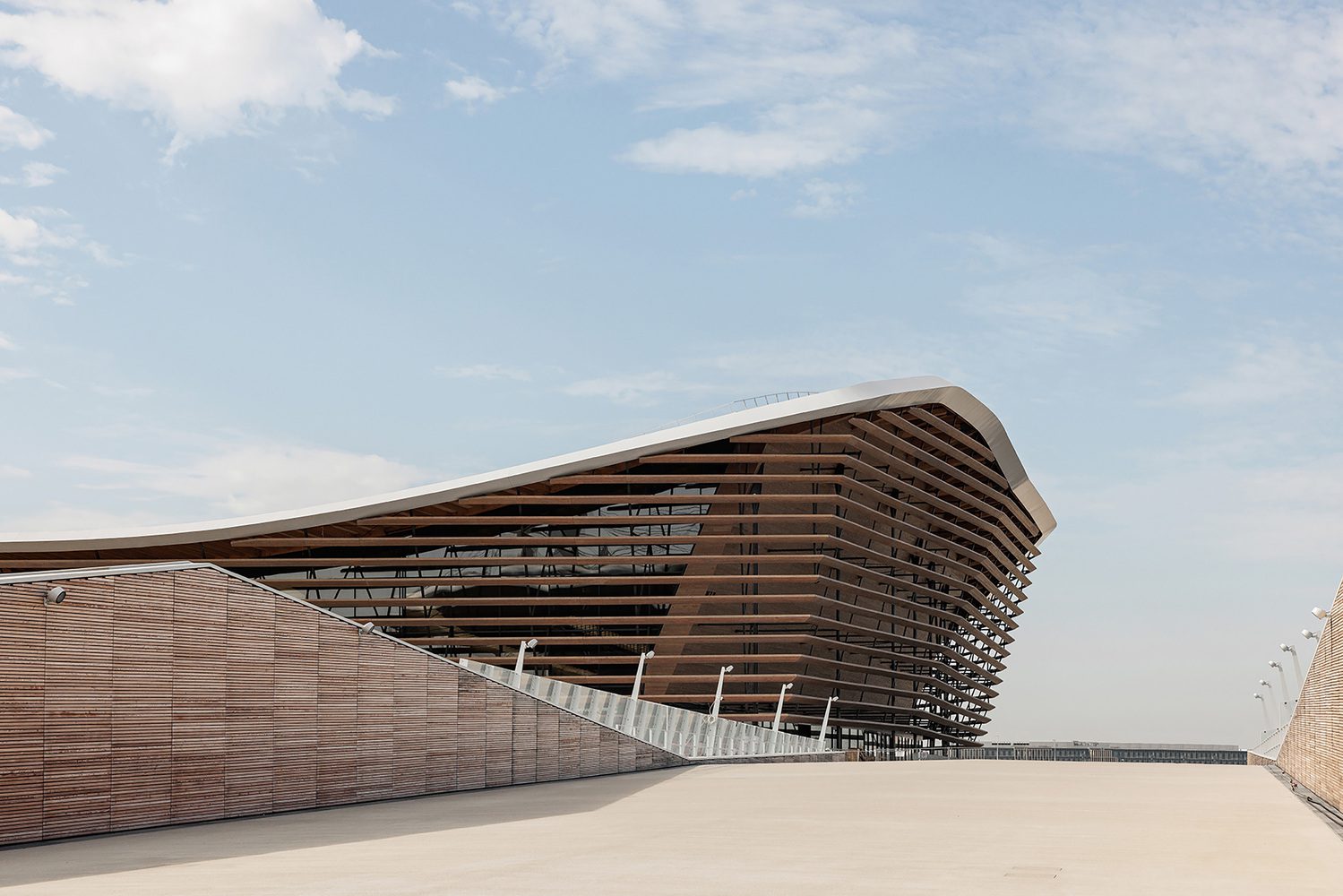

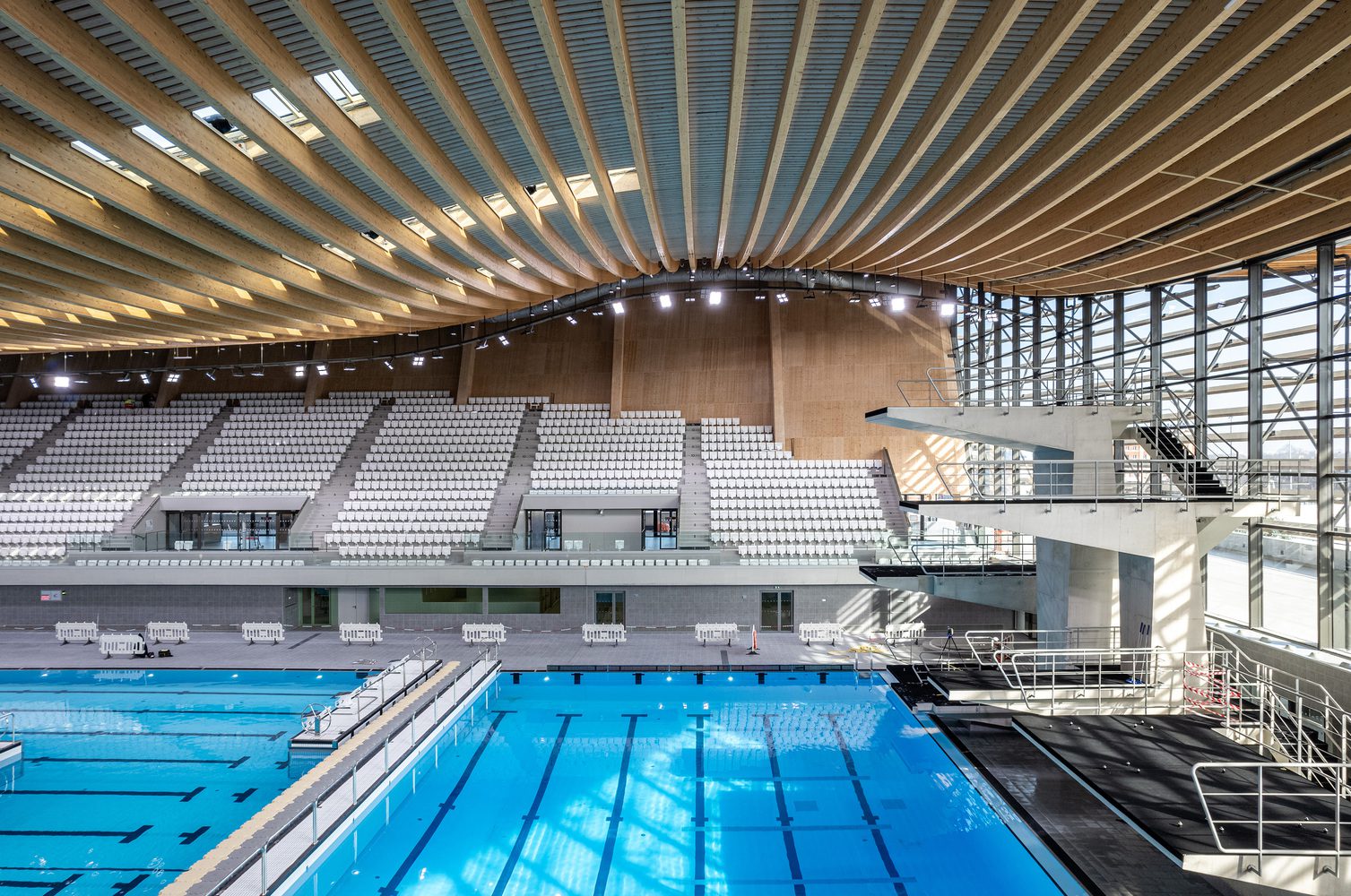

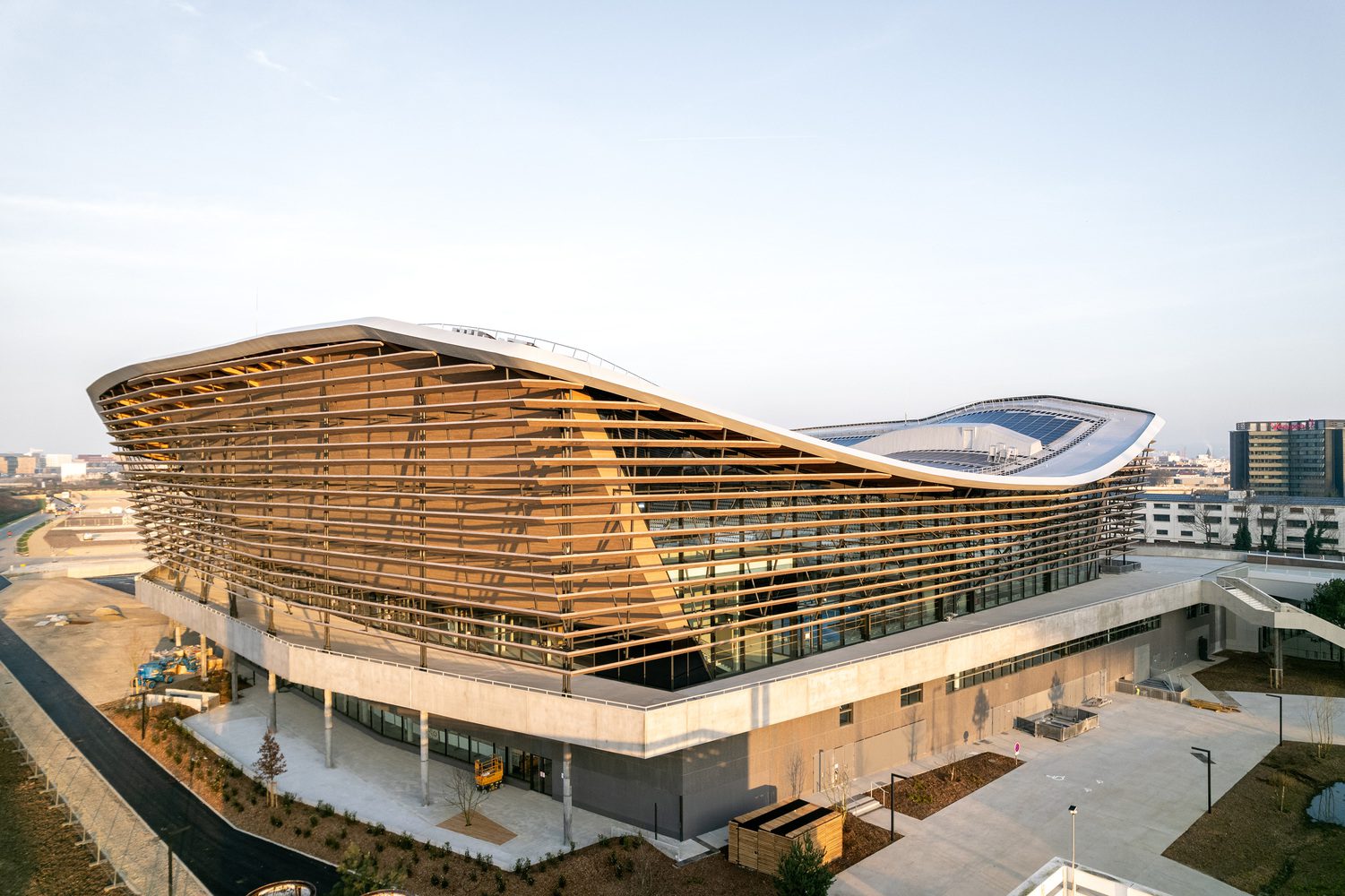

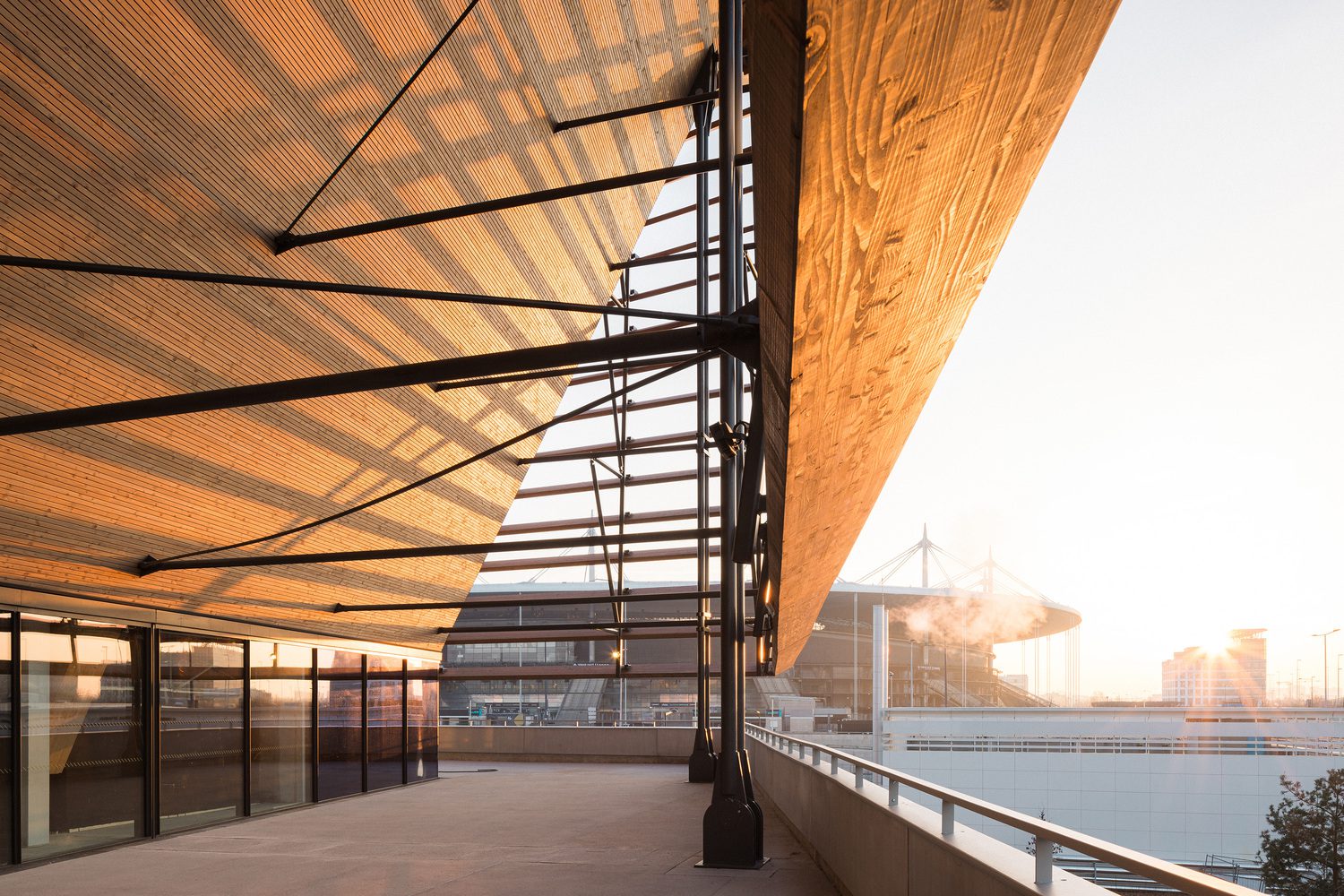

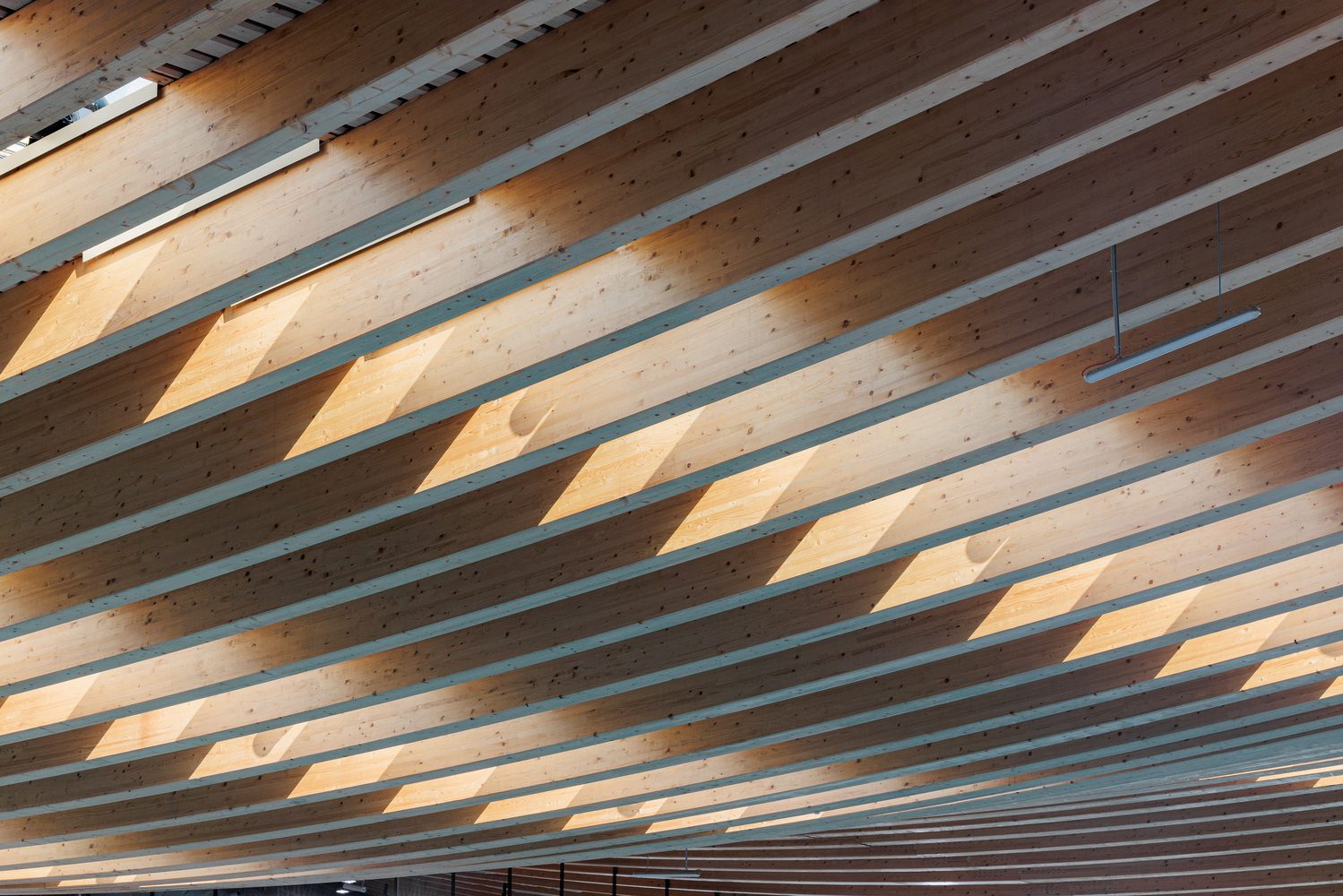

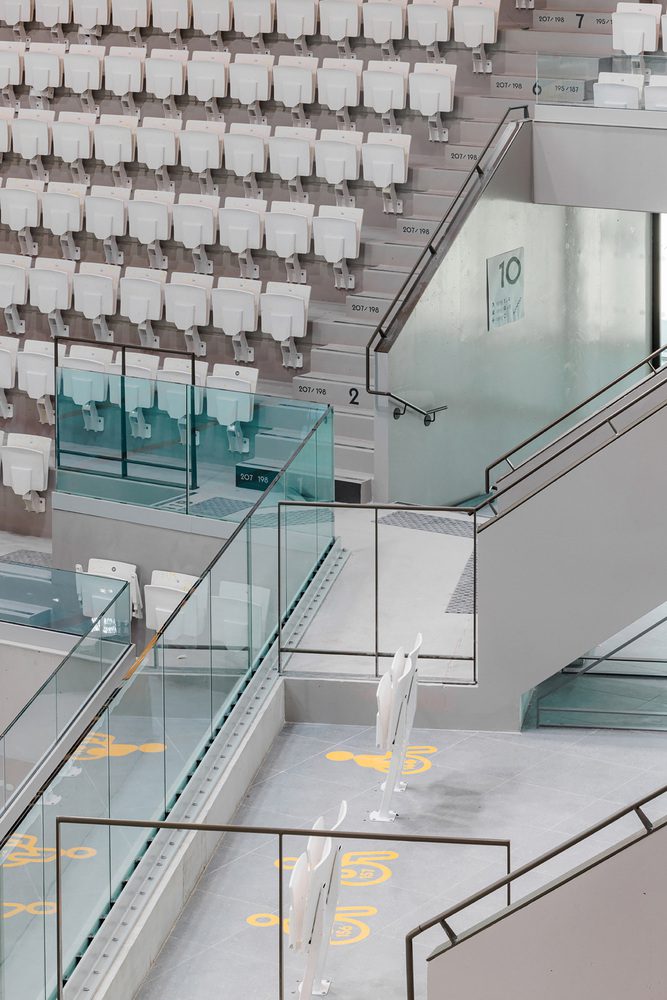

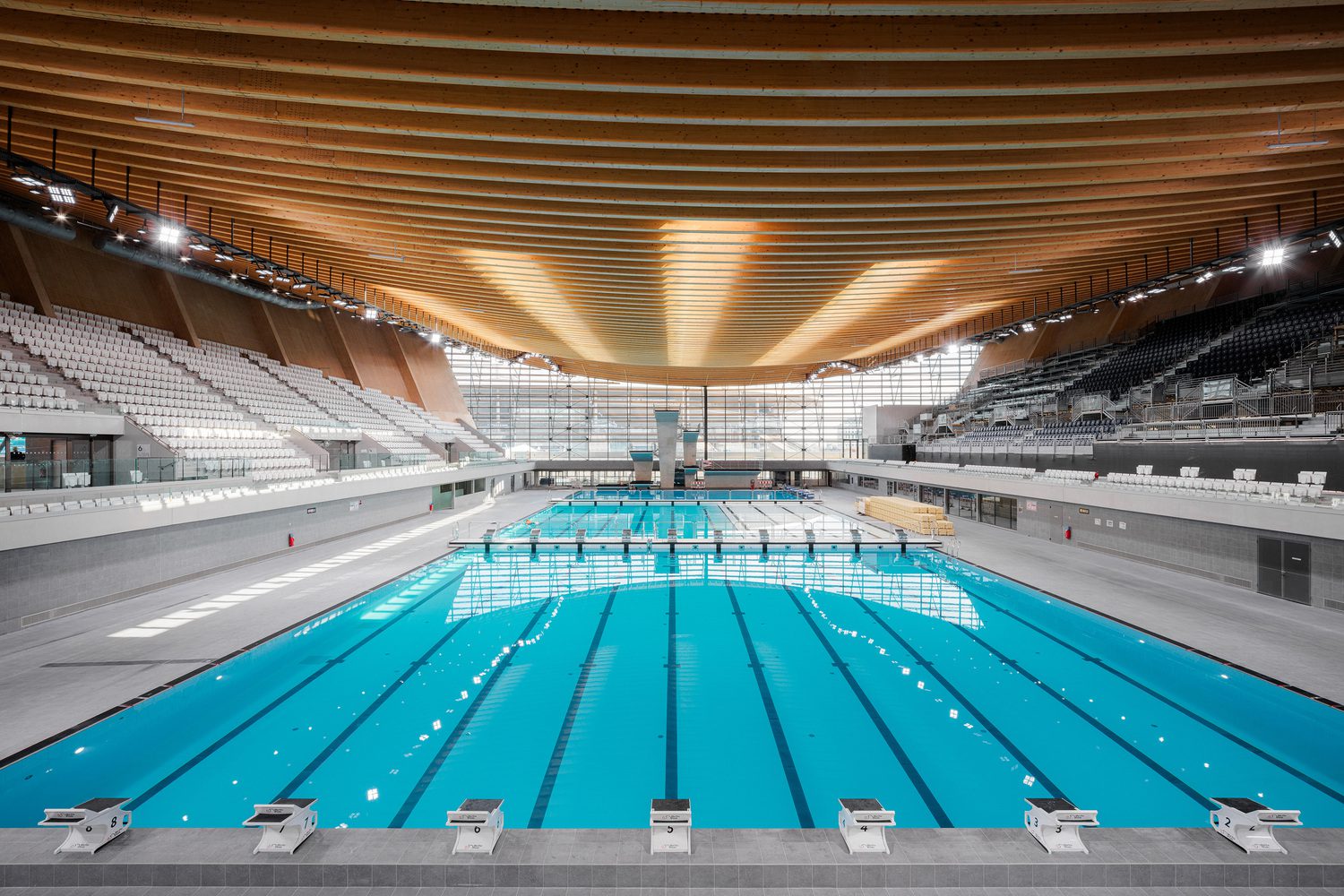

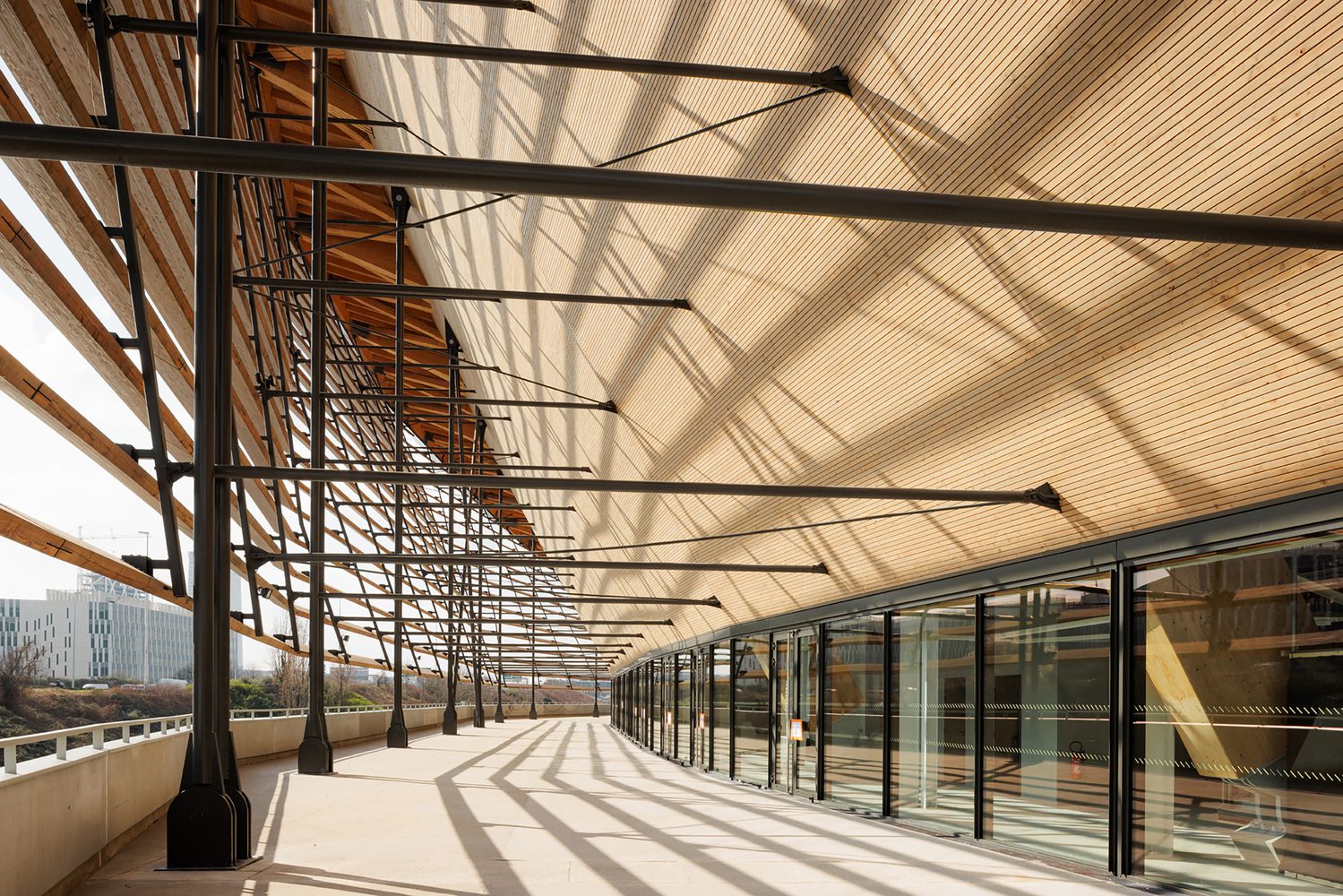

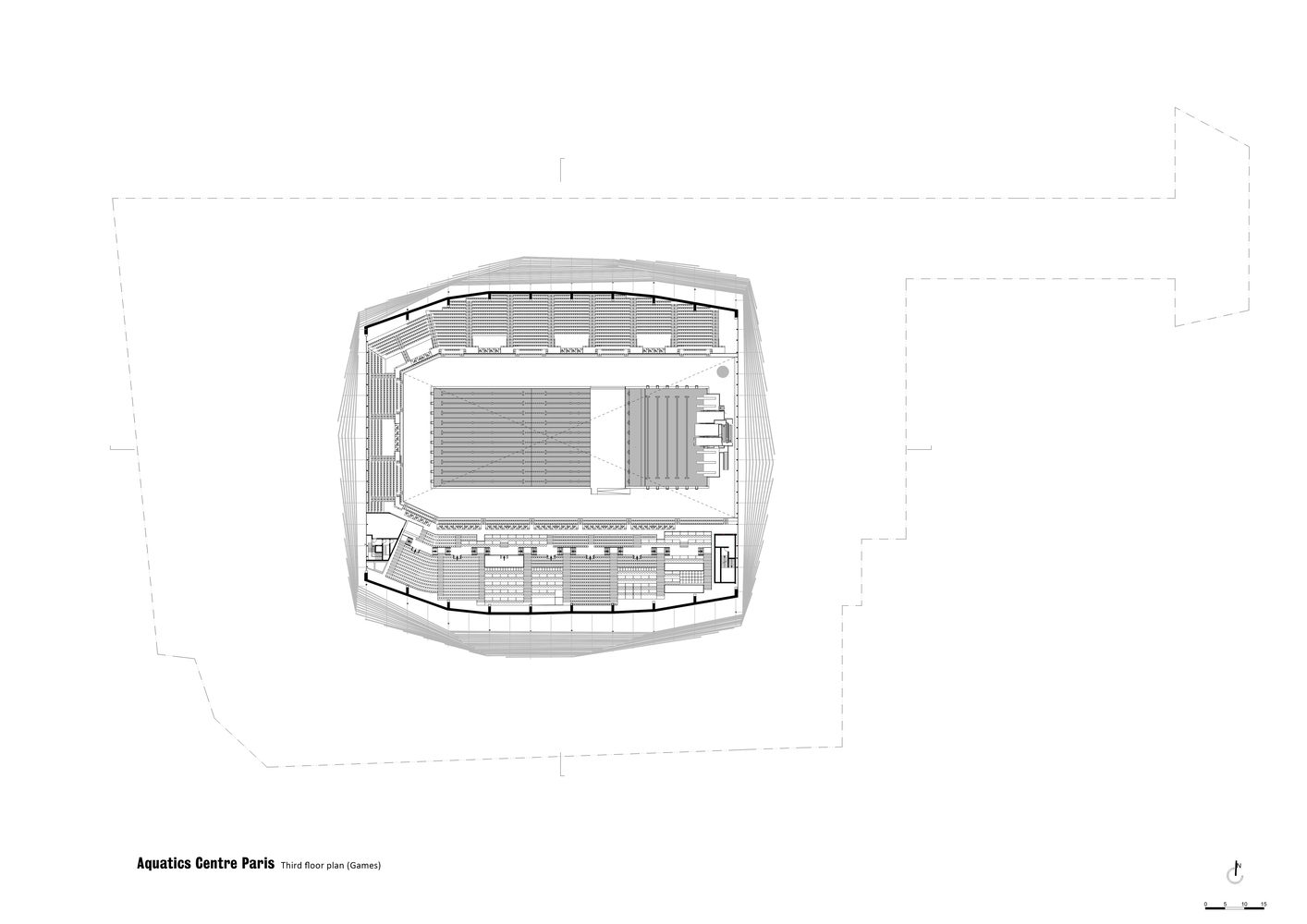

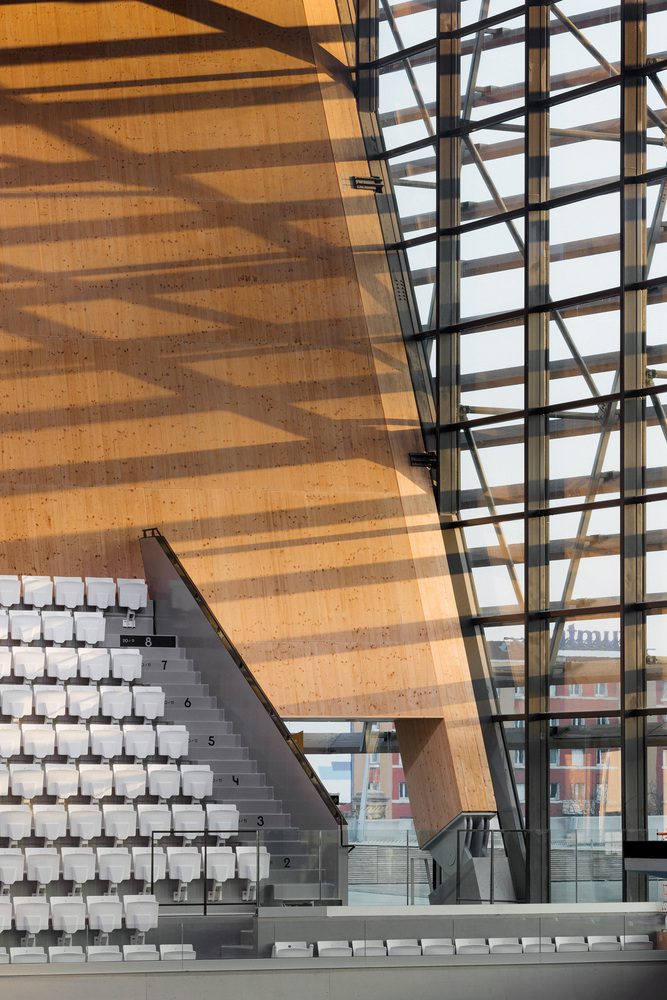

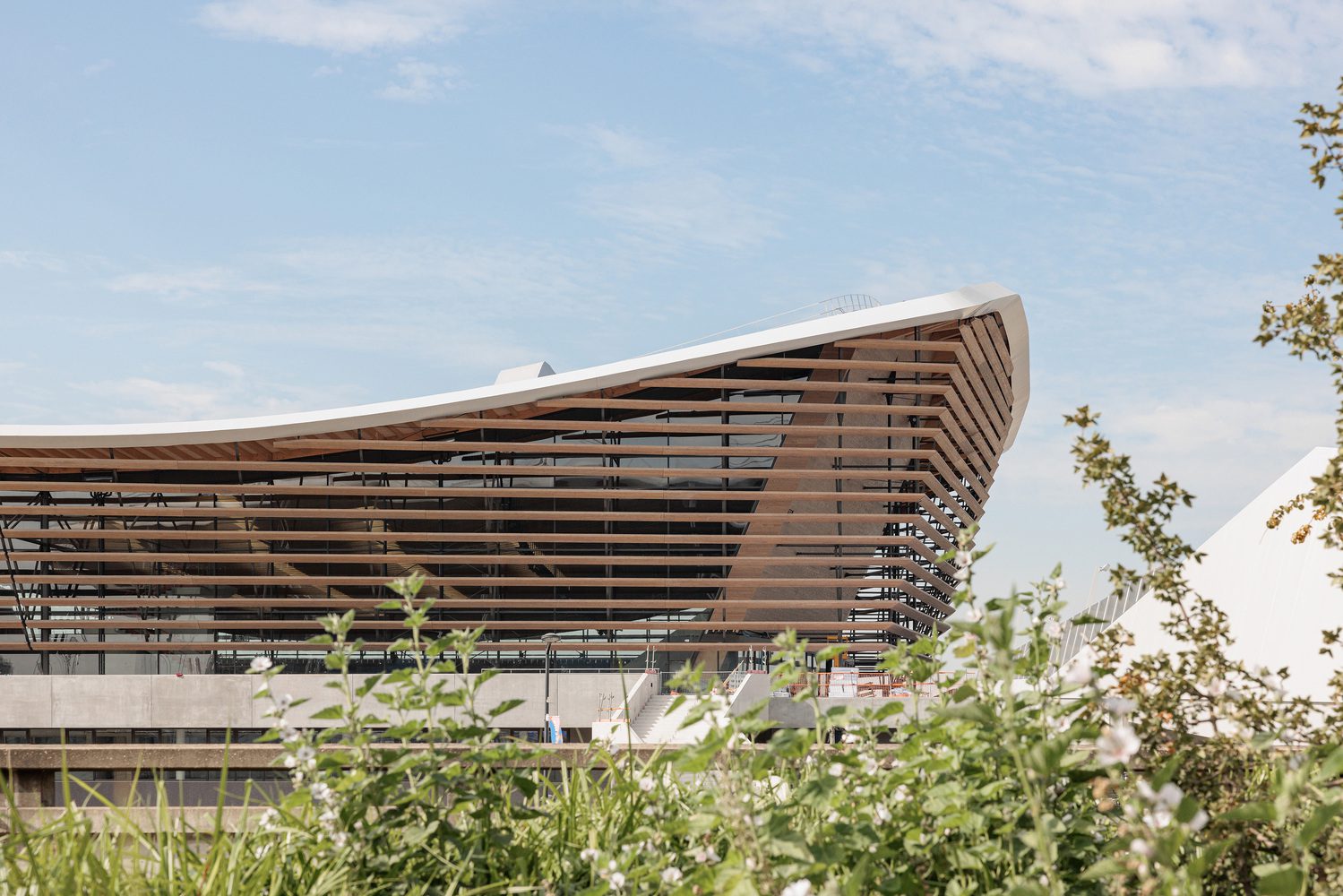

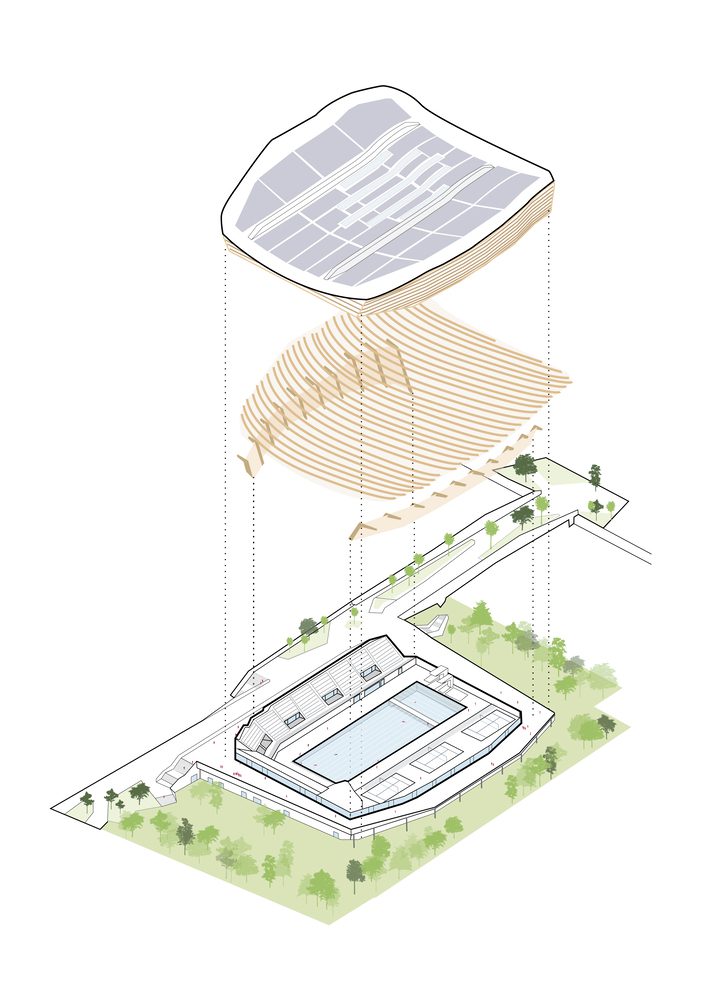

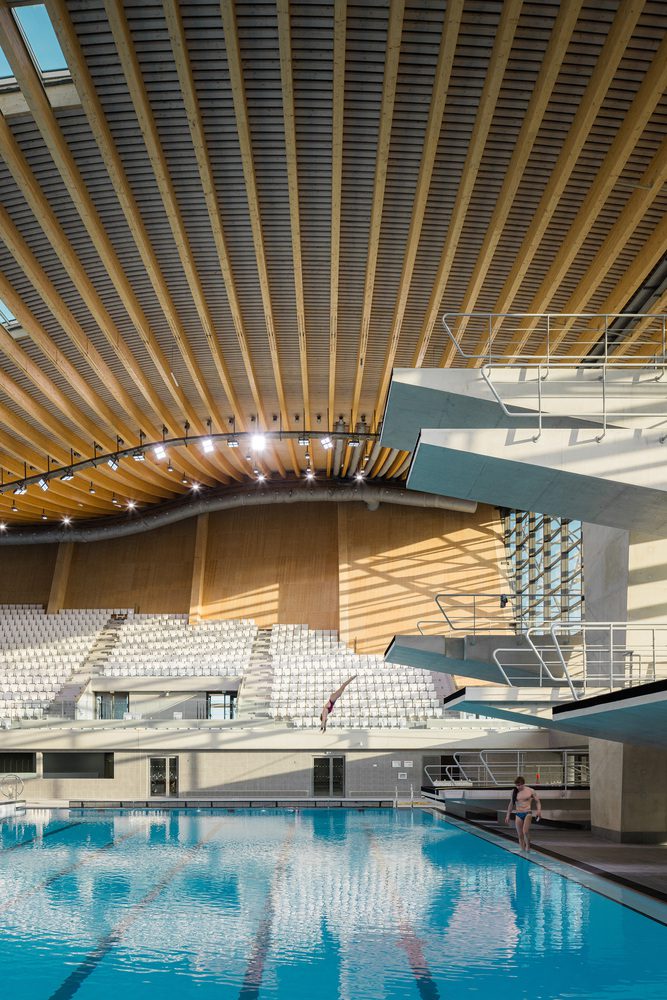

Wood, one of the quintessential bio-based construction materials, is used to create the main structure of this building. The design of the Aquatics centre features an impressive wooden roof, a suspended shape with minimal construction height that strictly follows the required minimum space for tribunes, people and sightlines, thereby minimizing the amount of air that needs to be conditioned during the coming 50 years. By using wood for this monumental structure, the proposal doubles the required minimum percentage of bio-sourced materials. The Olympic arena under the roof, with tribunes on three sides, can host 5000 spectators around an innovative, modular and multifunctional competition pool.

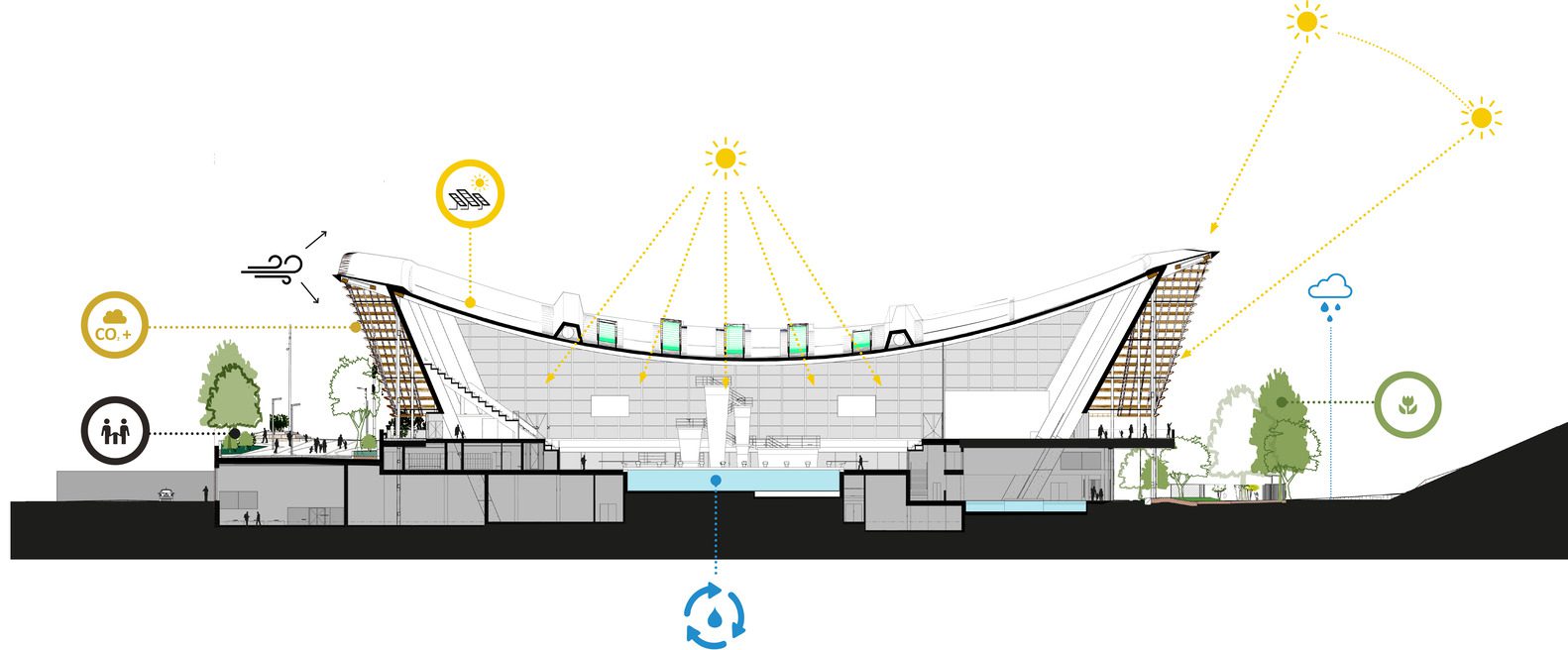

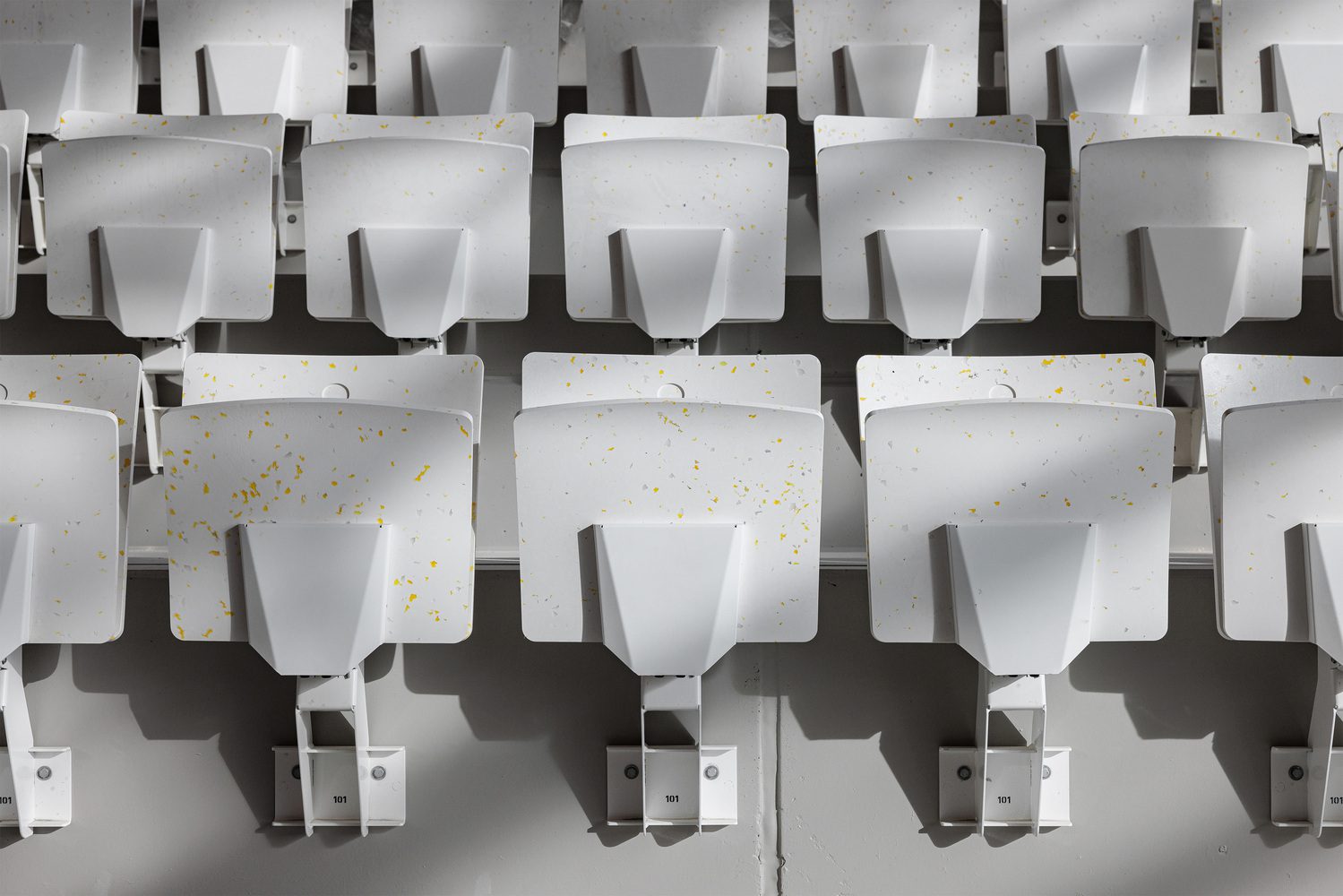

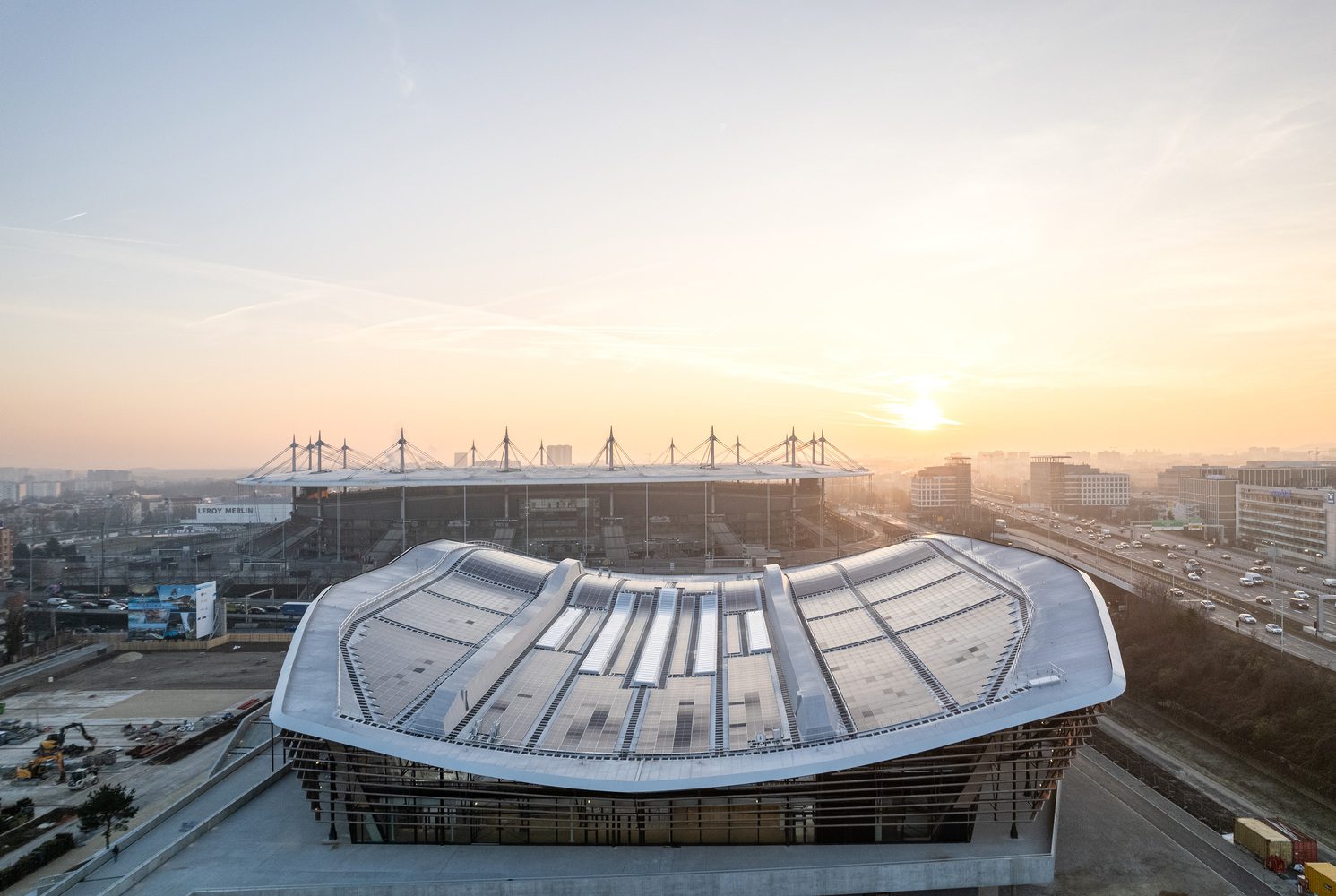

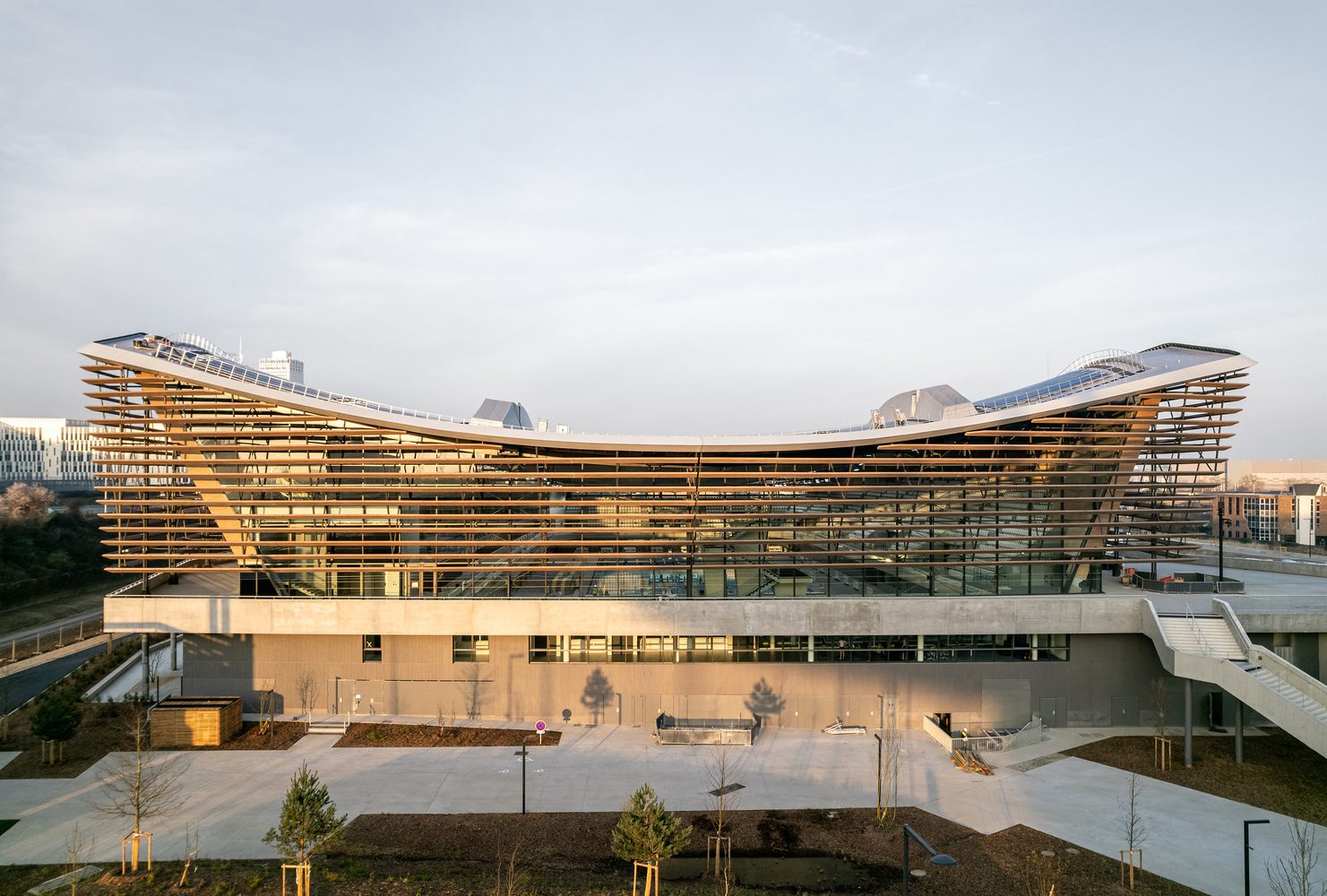

Energy consumption is one of the big challenges for swimming pools, due to water treatment and high temperature demands. By reducing the energy demand and creating a smart energy system, 90% of the needed energy can be provided with renewable or recovered energy. The solar roof will be one of the biggest solar farms in France and will cover 20% of all required electricity production. 100% of the energy produced by the solar roof is utilised directly on-site. All tribune chairs are newly designed and made out of 100% recycled plastic collected from the neighbourhood.

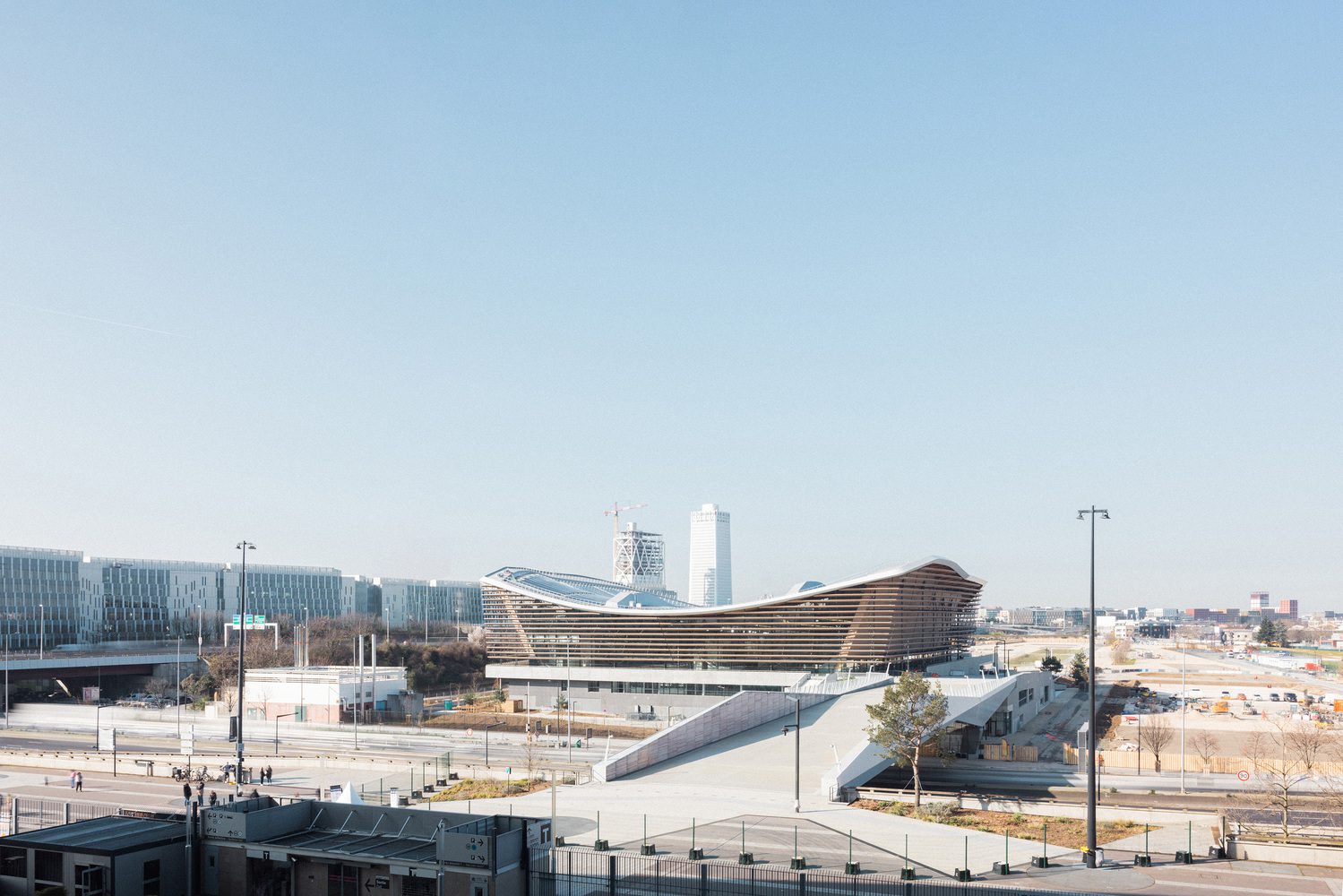

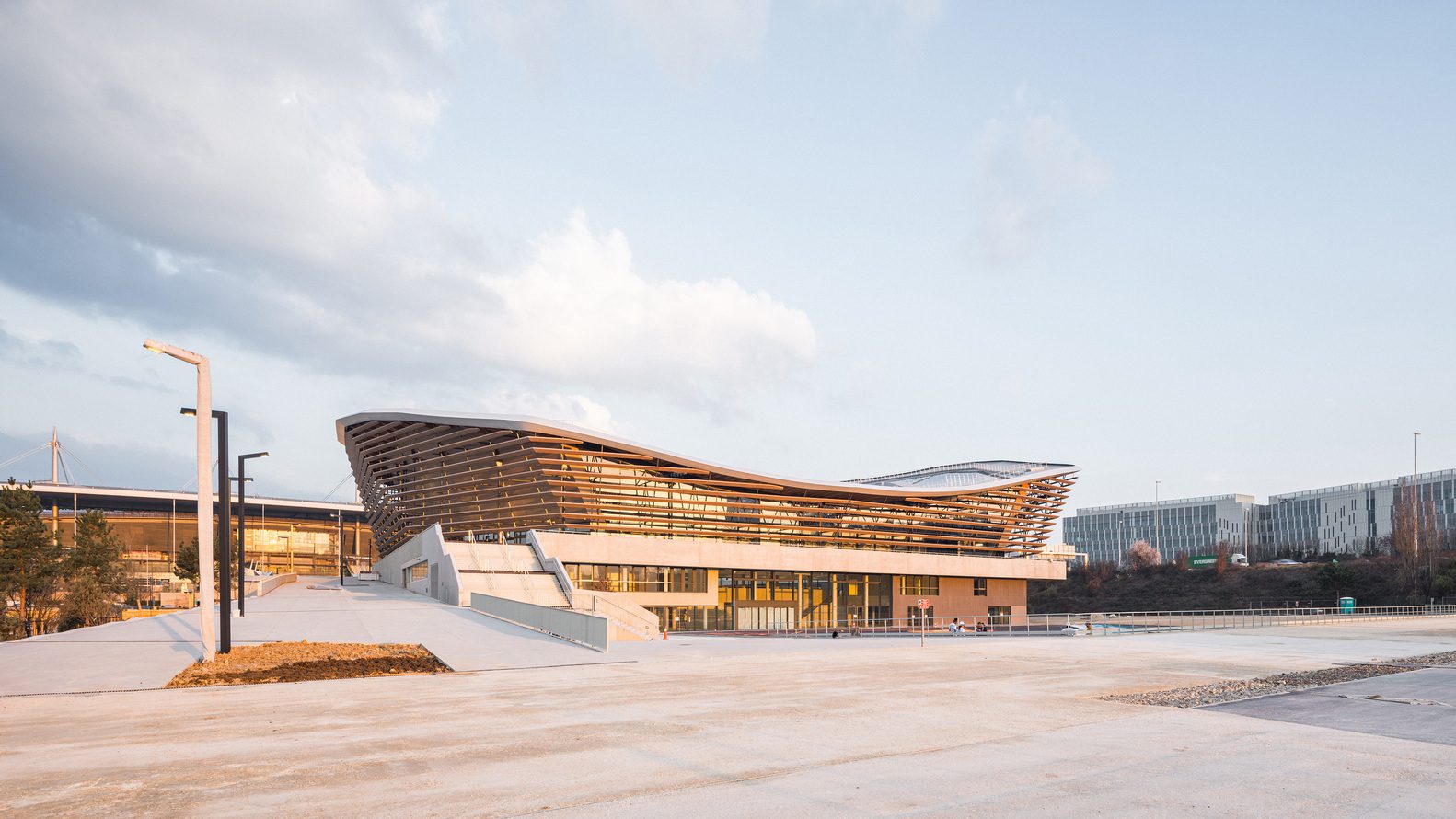

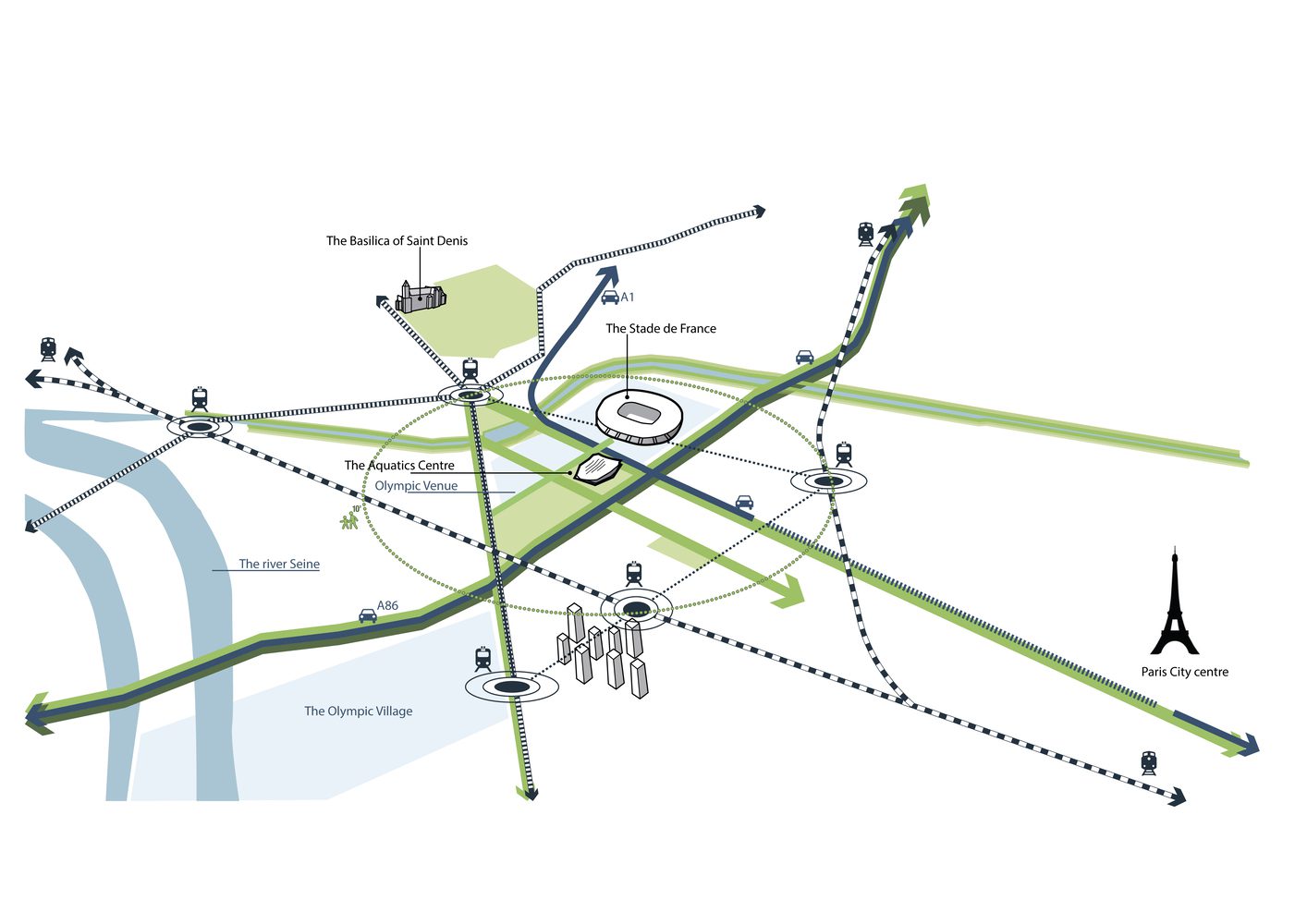

By gathering people around sports and leisure, the new Aquatics Centre creates a neighbourhood that builds bridges between cultures and districts whilst making use of the facilities and surrounding public spaces. There is also the literal connection, with a new pedestrian bridge that crosses the highway and connects the public spaces around Stade de France with the Aquatic Centre and the new heart of the future eco neighbourhood of La Plaine Saulnier.
Project Info:
-
Architects: Ateliers 2/3/4/, VenhoevenCS
- Country: Saint-Denis, France
- Area: 20000 m²
- Year: 2024
-
Photographs: Salem Mostefaoui, Simon Guesdon
-
Manufacturers: Myrtha Pools, Dive Gym, Le Pavé, Mathis, Mtech
-
Main Contractor: Bouygues Bâtiment Ile-de-France
-
Structural Engineer: SBP Schlaich Bergermann Partner GmbH
