Stood astride an existing London stock brick wall and incorporating a range of brick bonding styles, including a unique vertically-bonded structural wall, Southwark Brick House in Bermondsey is a showcase for this highly versatile building material. The newbuild three-bedroom house, designed and project-managed by Satish Jassal Architects, comprises two floors and a basement level spread across two brick wings accessed via a central staircase.
© Richard Chivers

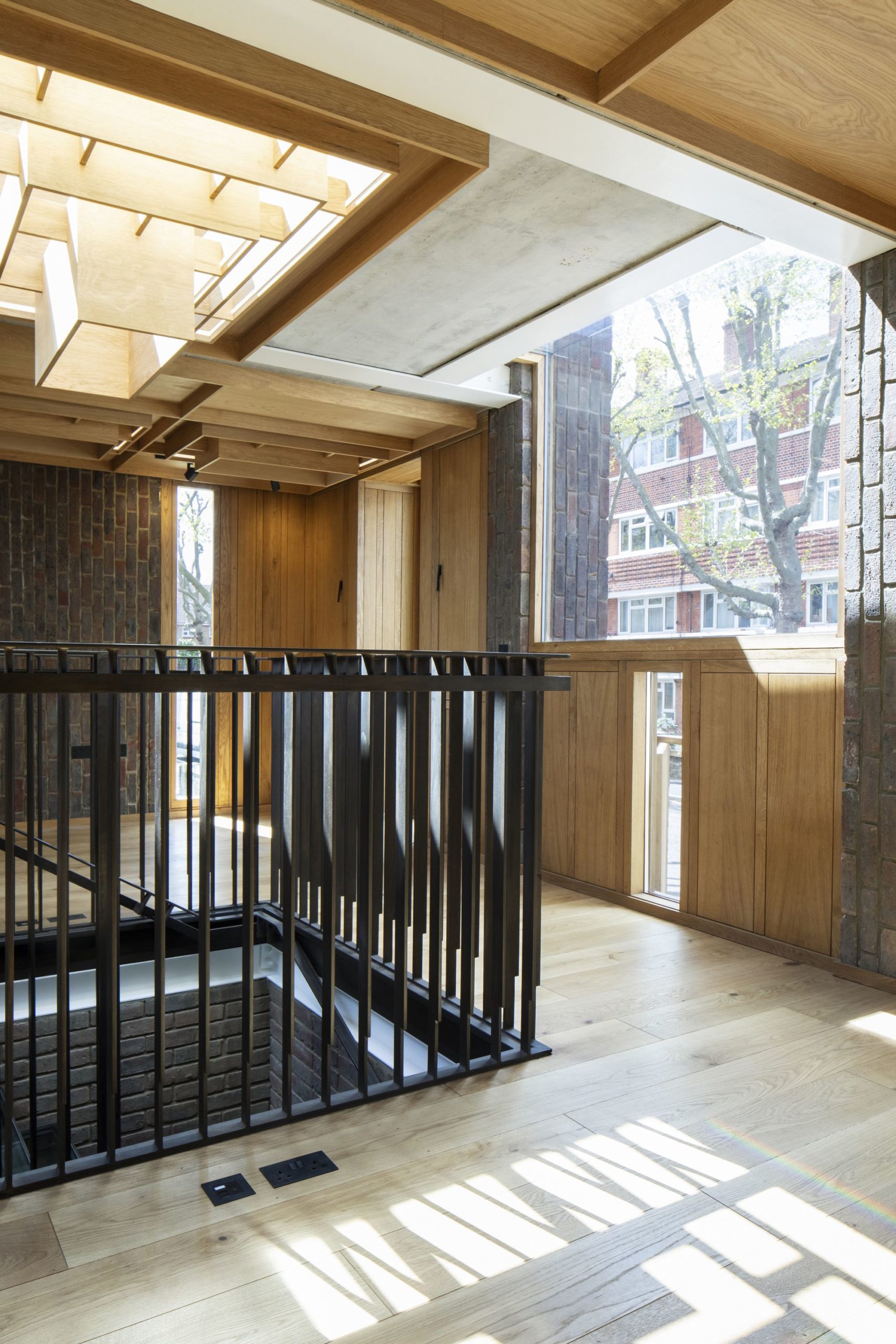

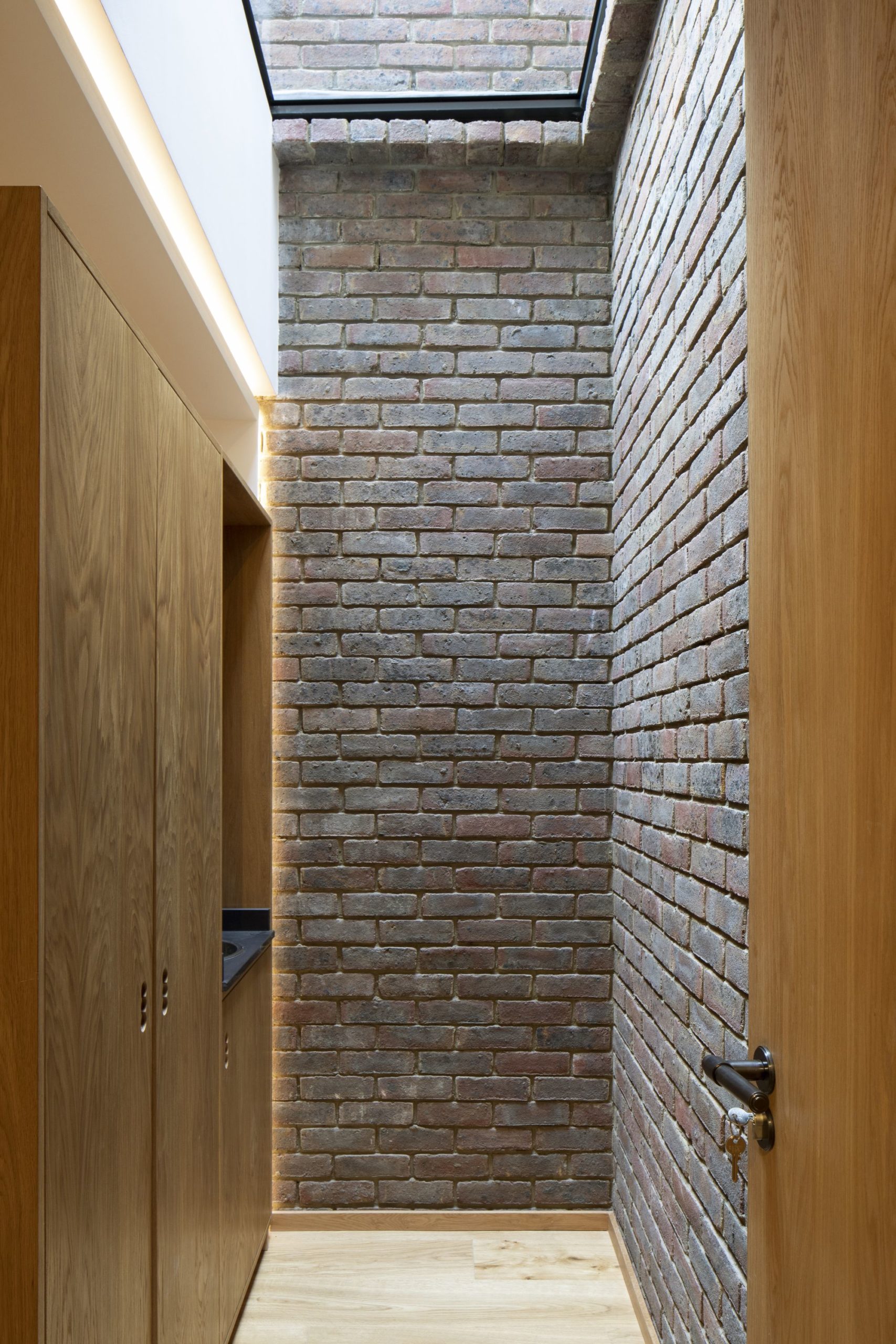

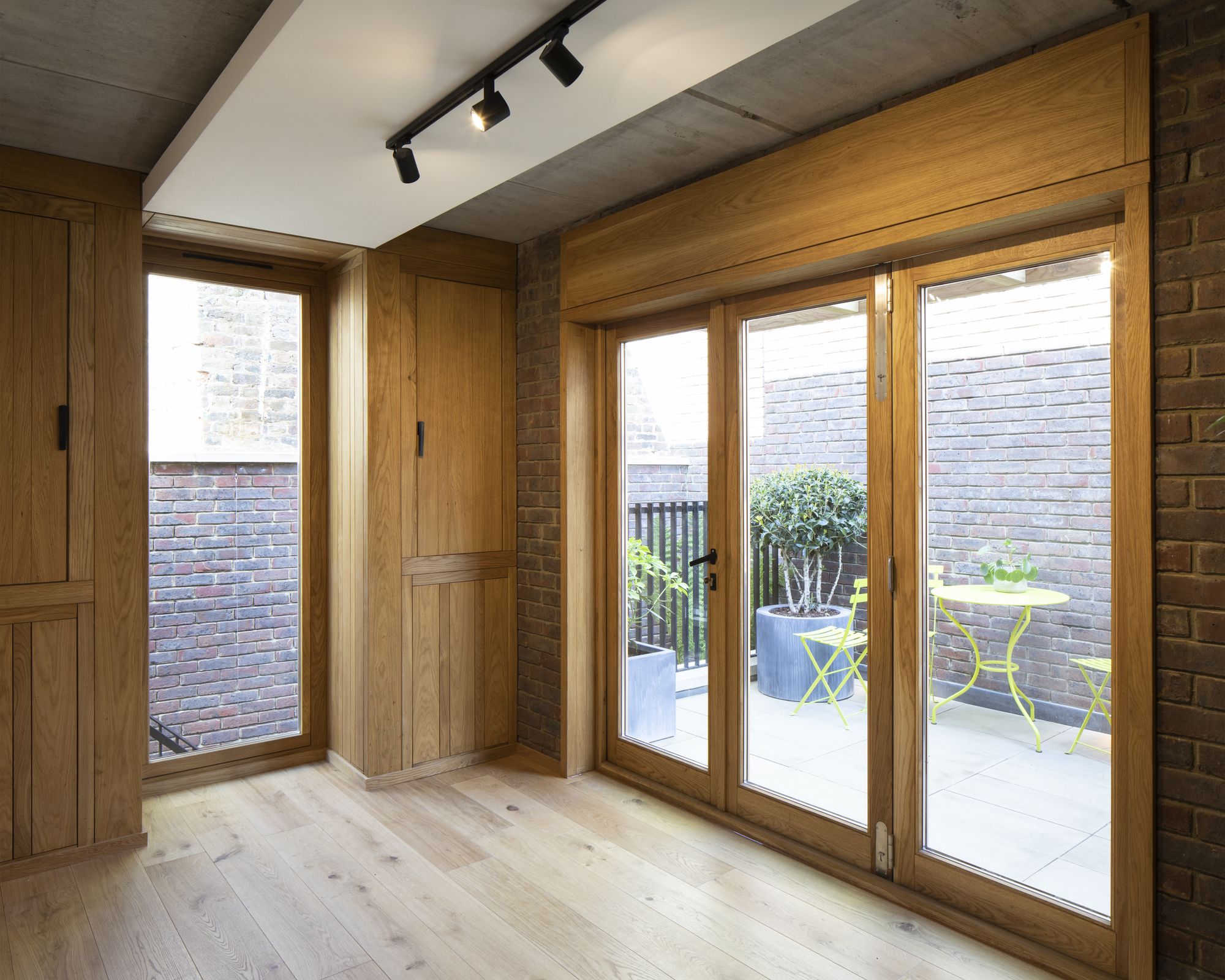

Bedrooms in the one and half-storey basement are illuminated by a linear light well; kitchen and dining areas on the ground floor feature external terraces. Living areas on the first floor are brightly lit by an elegant coffered timber ceiling and large bay windows that capture views down the tree-lined street.
© Richard Chivers

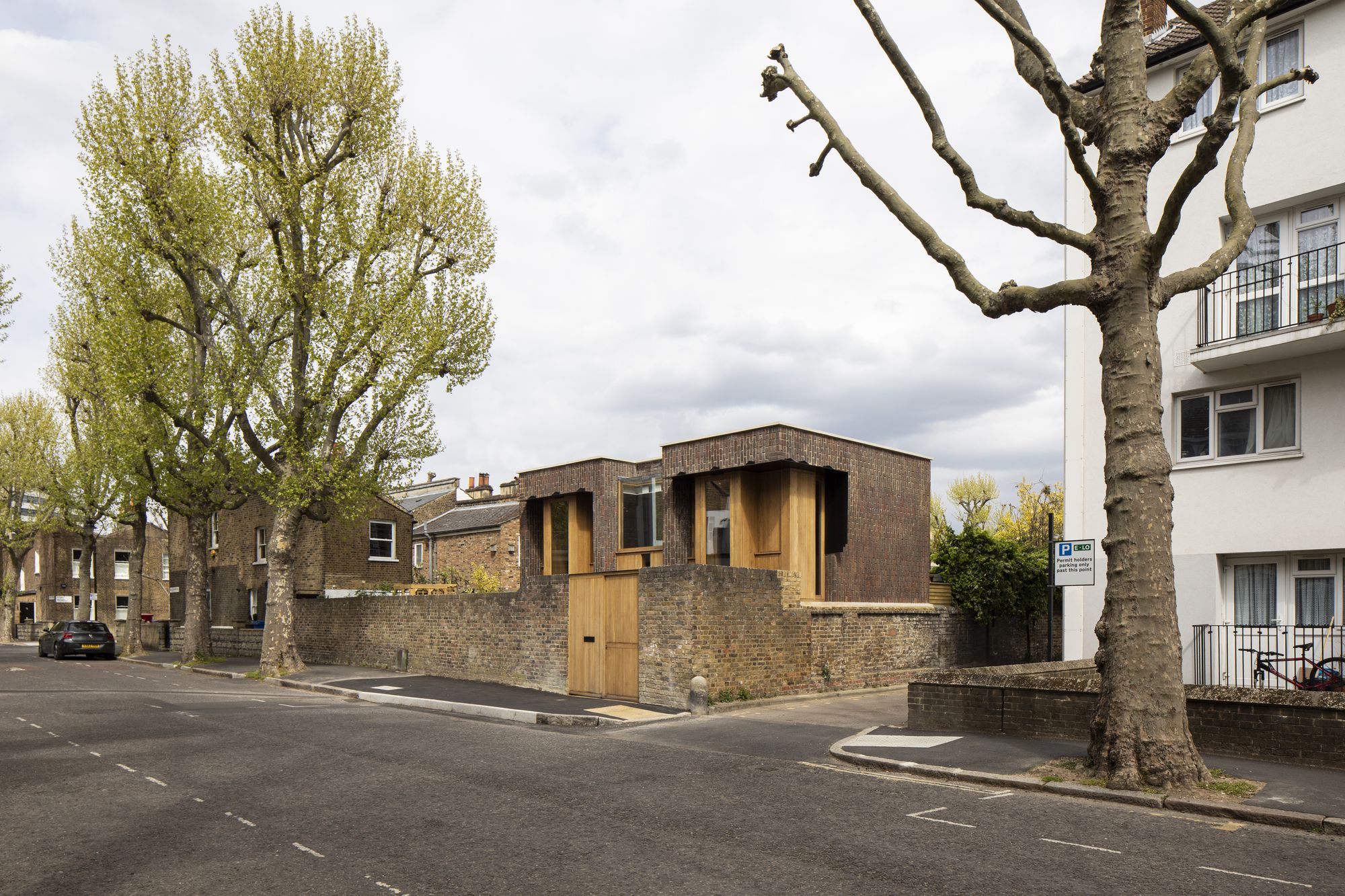

The end of the terrace property is positioned on the site of a former car garage, in Thorburn Square conservation area, a residential neighborhood typical of Southwark, characterized by historic terraces and more modern apartments. The design aims to reconcile the sensitive location with the brief to deliver an elegant and spacious contemporary family home.
© Richard Chivers

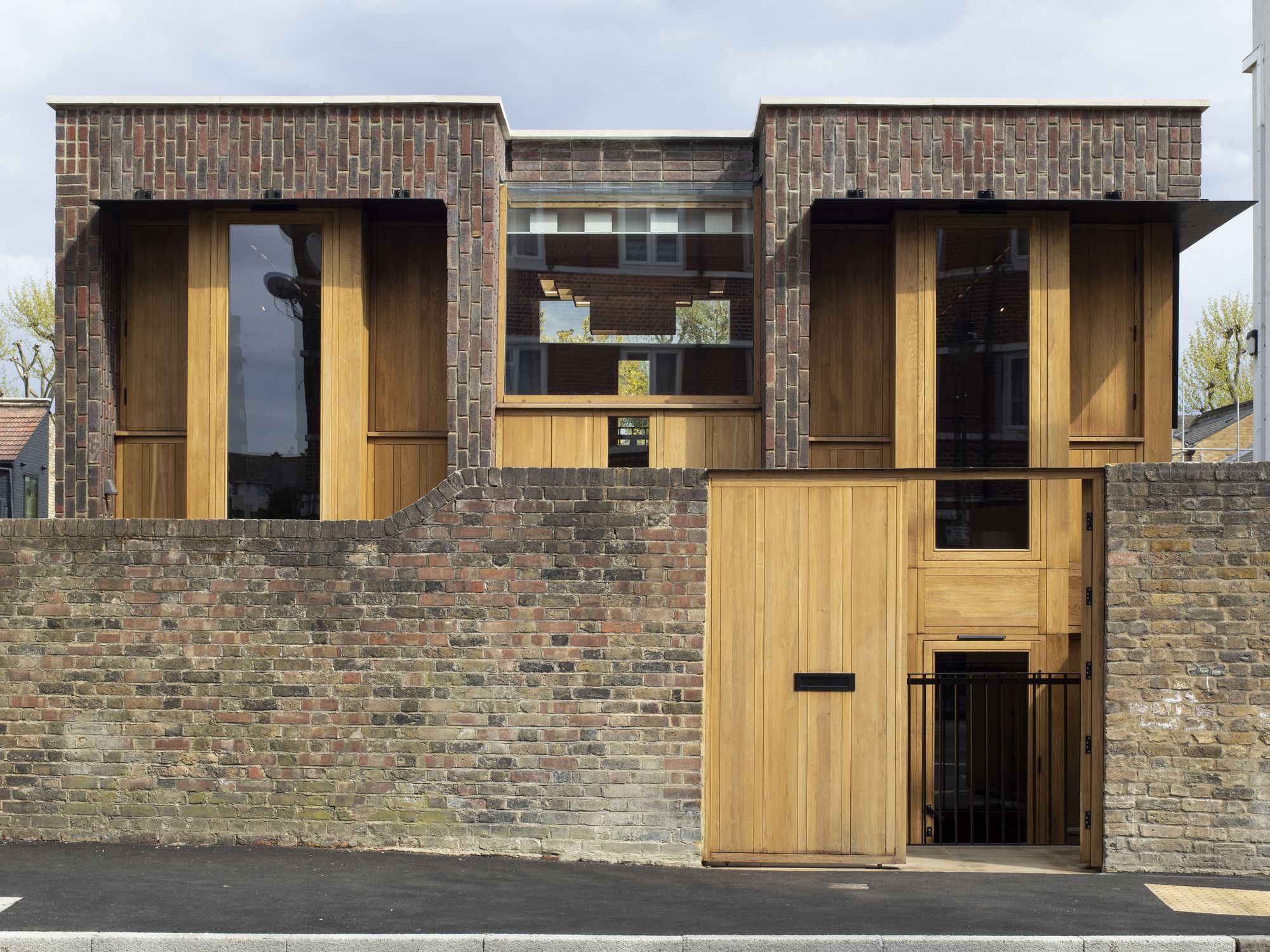

Proximity to neighboring properties and gardens informed the decision to sink the building into the ground, lowering the ground floor level by one meter. The building line is pulled back from the street edge and the lower portion of the house is hidden behind the historic boundary wall, which was retained and underpinned. The side elevation facing an access road sits on top of the historic wall. Elements of the local building vernacular, such as blank gables, flat-edged roofs, and vertical timber windows are acknowledged and incorporated into the facades.
© Richard Chivers
The red Ibstock West Loathly Sharpthorne bricks used across the building were chosen to compliment, yet contrast with the existing yellow London stock brick wall and the golden tones of the oak-paneled windows. The rough and imperfect texture of the bricks gives the building a worn appearance and makes it feel like an established part of the streetscape. Deep reveals cut into the facades, which frame the large oak windows with openable timber ventilation panels, give solidity and depth to the walls.
© Richard Chivers
The bricks align to three different bonding patterns, which each define a different part of the building. A horizontal running bond defines the kitchen and dining areas, a stack bond (bricks are aligned directly on top of each other) defines the stair core. The first-floor living space is enclosed by an innovative vertical running bond that’s also expressed internally. All the bricks are separated by 10 millimeters recessed mortar joints, the maximum possible, to create deep shadows in all the joints and accentuate patination.
© Richard Chivers
The vertical band posed a particular challenge as it was unfamiliar to the main contractor and accuracy was paramount because the walls are structural. The architects developed a special procedure for construction to ensure it would not hold up the program. The finished building is both highly distinctive and of its place, exhibiting a strong visual connection to the borough that will deepen further as its materials weather and fade.
© Richard Chivers
Project Info:
Architects: Satish Jassal Architects
Location: Southwark Township, United Kingdom
Area: 126 m²
Project Year: 2021
Photographs: Richard Chivers
Manufacturers: Kingspan Insulated Panels, XAL, Delta Membranes, Hard & Ware, Ibstock
